Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

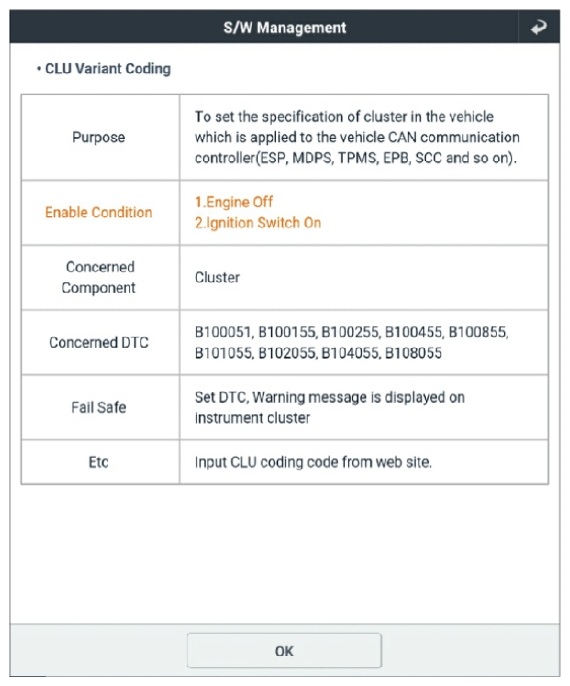

G13384752Courtesy of KIA MOTORS AMERICA, INC.

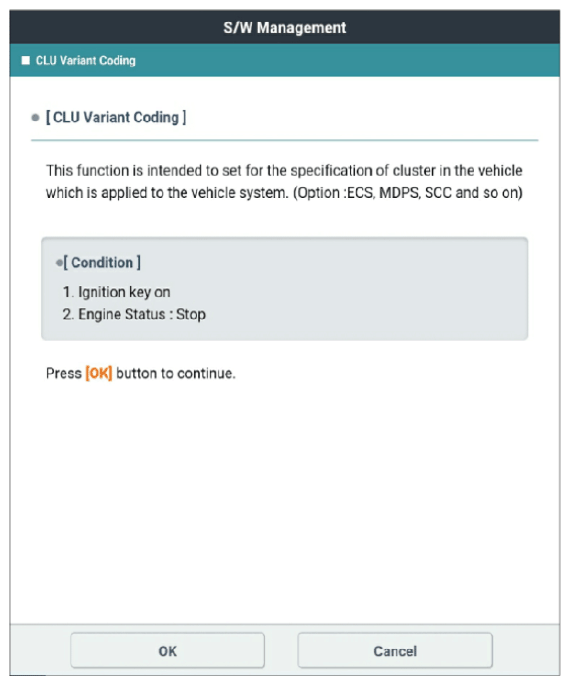

G13384753Courtesy of KIA MOTORS AMERICA, INC.

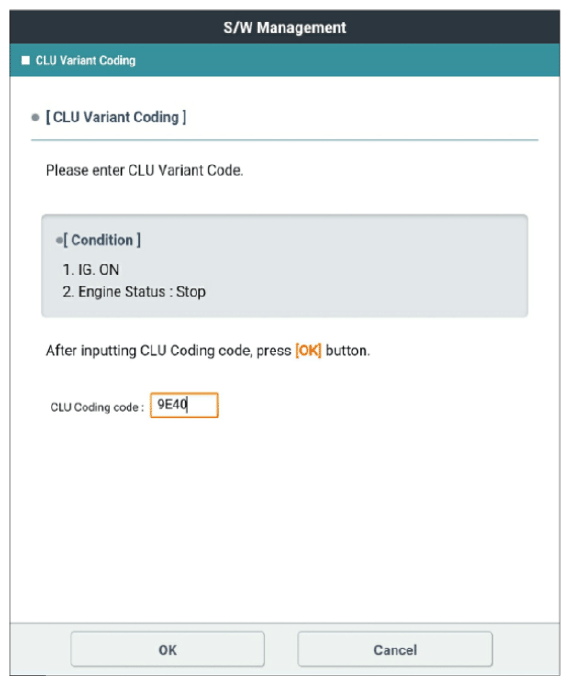

G13384754Courtesy of KIA MOTORS AMERICA, INC.

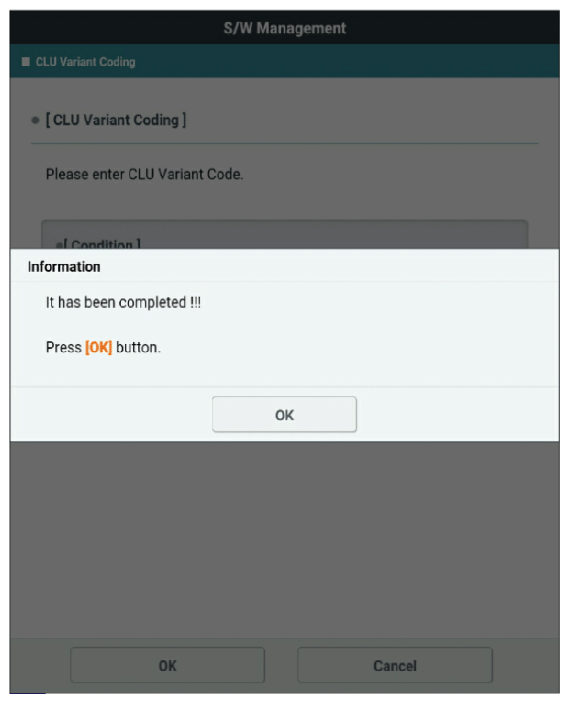

G13384755Courtesy of KIA MOTORS AMERICA, INC.

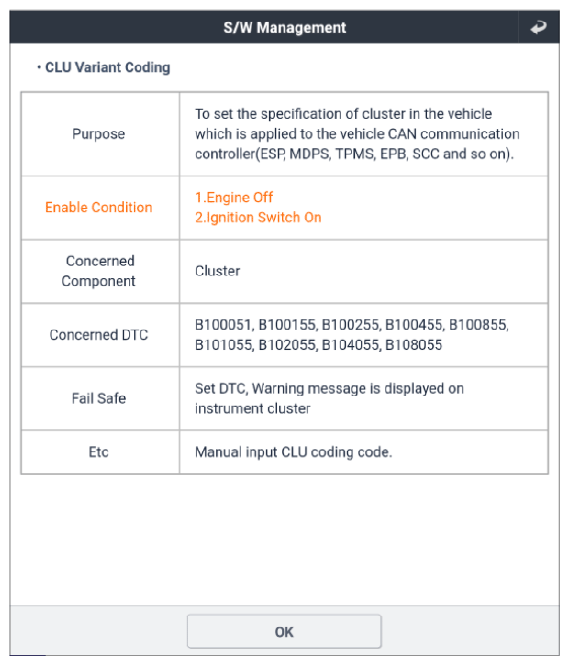

G13384756Courtesy of KIA MOTORS AMERICA, INC.

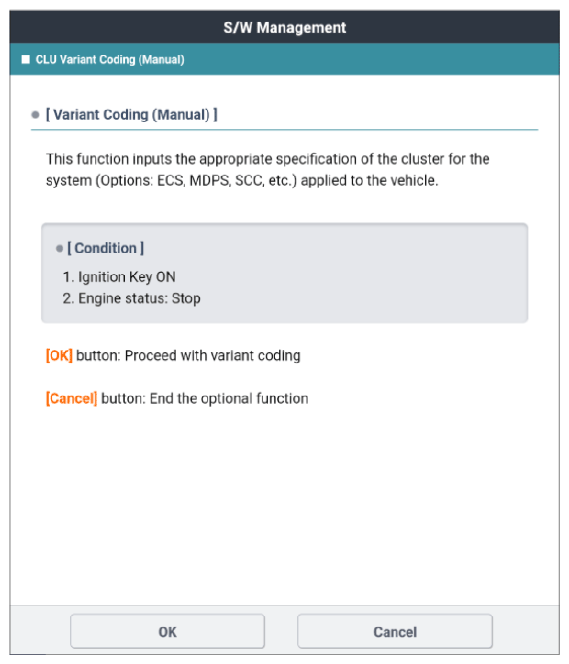

G13384757Courtesy of KIA MOTORS AMERICA, INC.

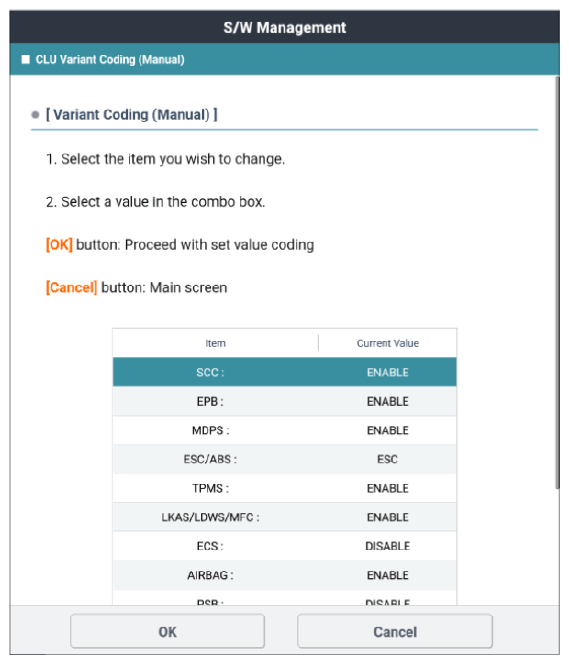

G13384758Courtesy of KIA MOTORS AMERICA, INC.

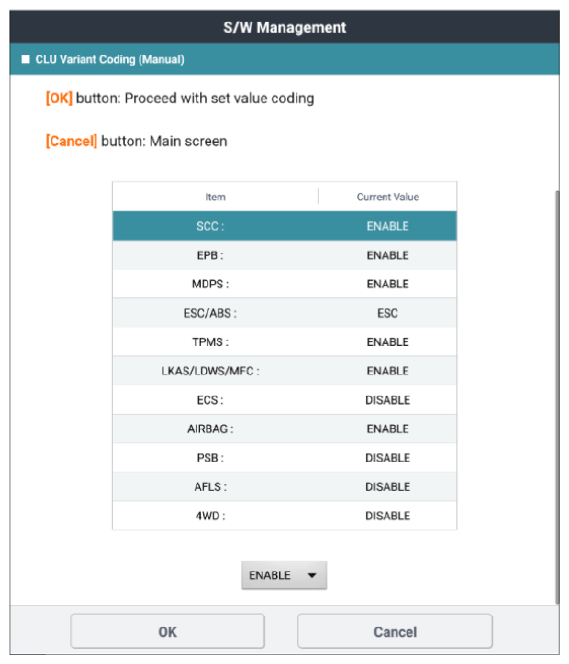

G13384759Courtesy of KIA MOTORS AMERICA, INC.

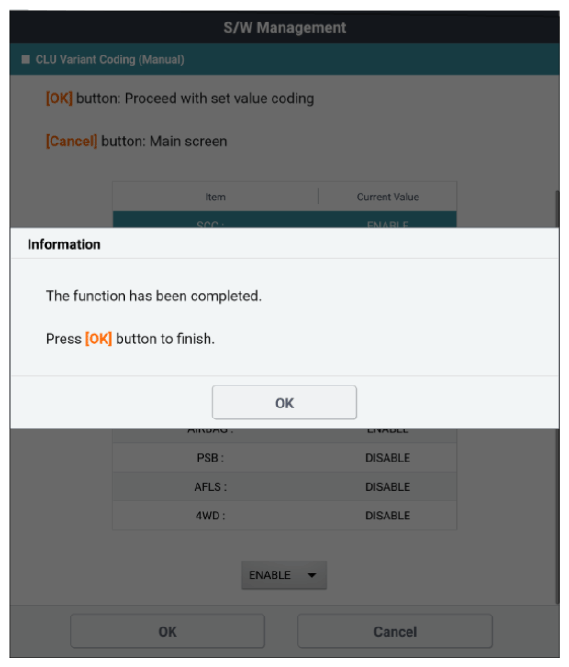

G13384760Courtesy of KIA MOTORS AMERICA, INC.
