Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

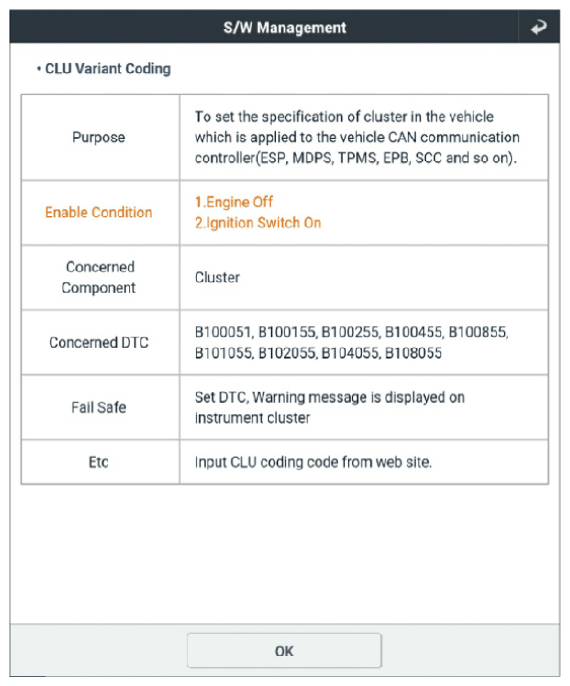

G13384696Courtesy of KIA MOTORS AMERICA, INC.

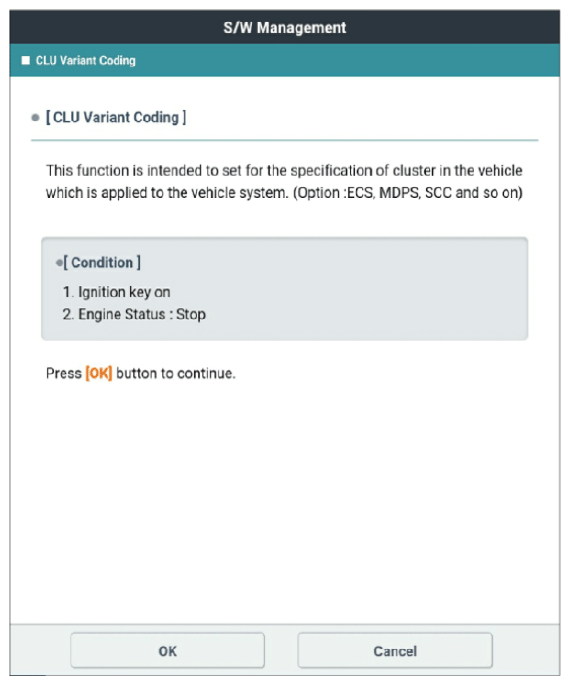

G13384697Courtesy of KIA MOTORS AMERICA, INC.

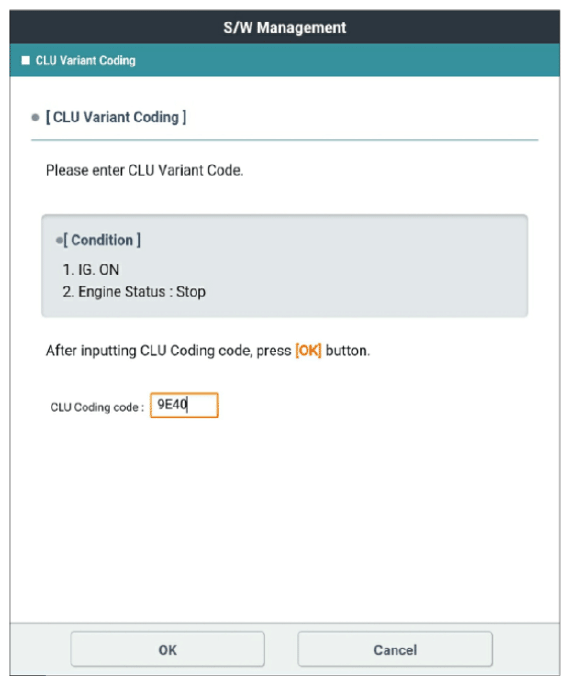

G13384698Courtesy of KIA MOTORS AMERICA, INC.

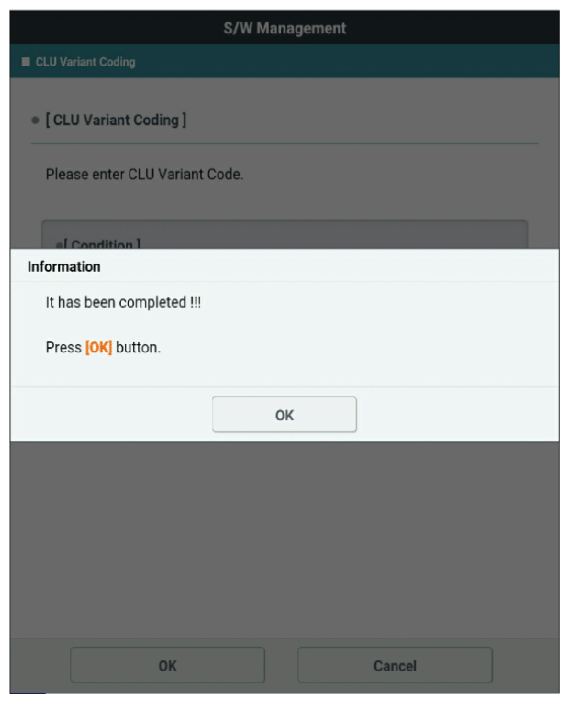

G13384699Courtesy of KIA MOTORS AMERICA, INC.

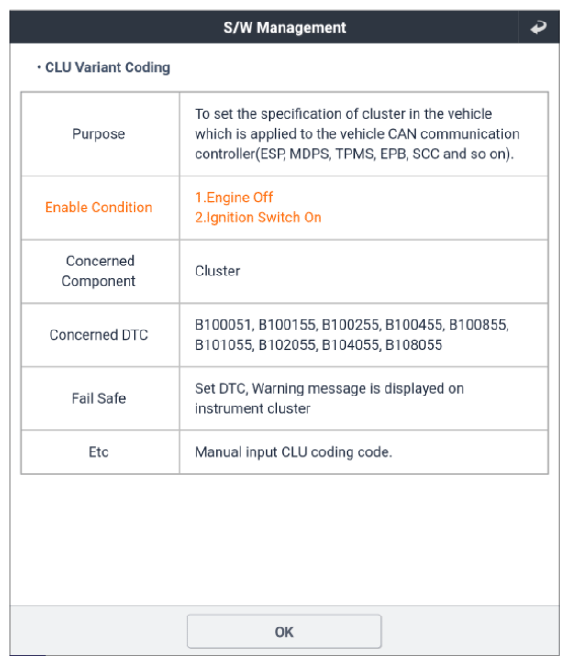

G13384700Courtesy of KIA MOTORS AMERICA, INC.

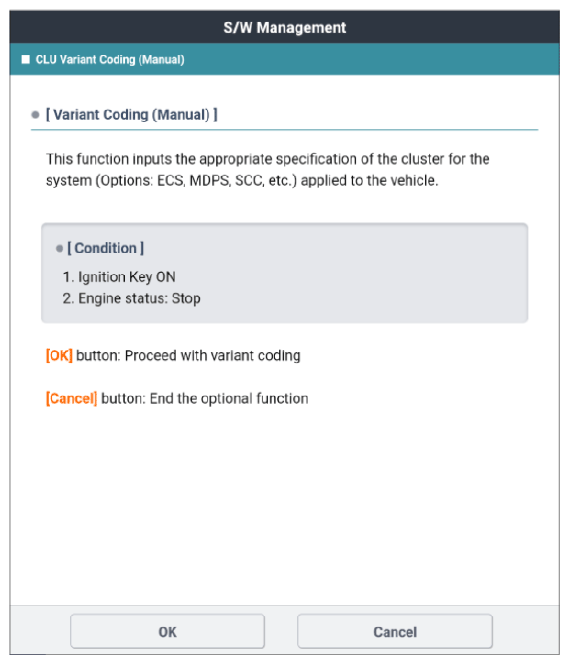

G13384701Courtesy of KIA MOTORS AMERICA, INC.

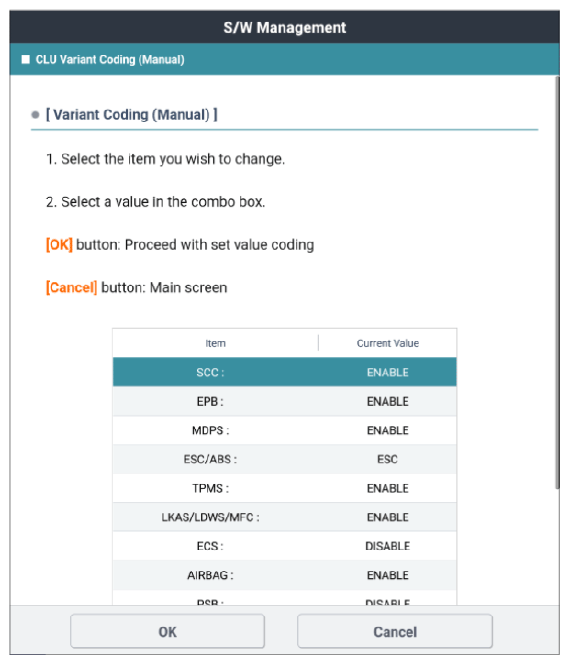

G13384702Courtesy of KIA MOTORS AMERICA, INC.

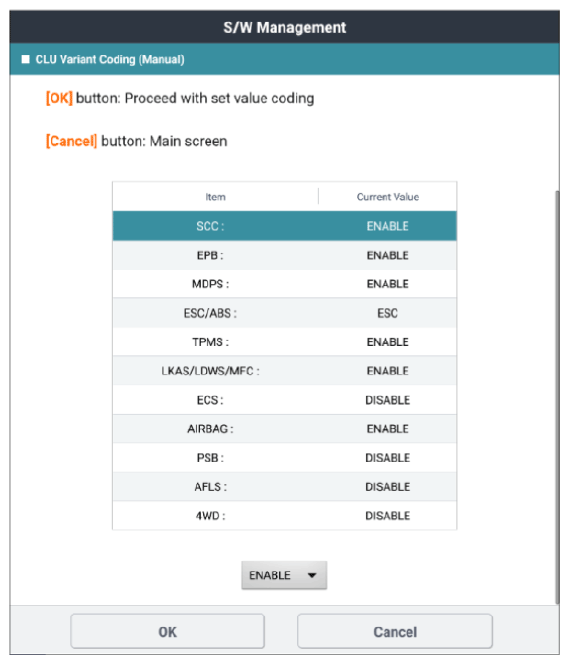

G13384703Courtesy of KIA MOTORS AMERICA, INC.

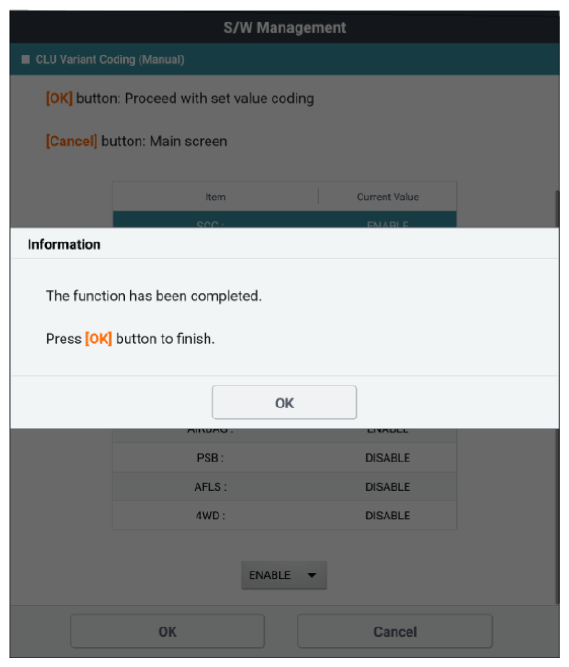

G13384704Courtesy of KIA MOTORS AMERICA, INC.
