Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Fig.1 |

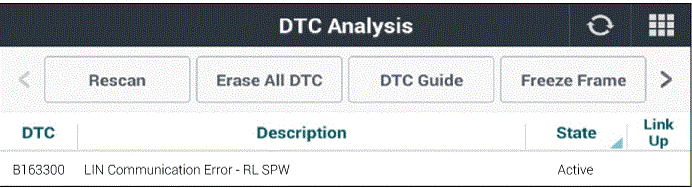

Fig.1) DTC status
| Active Fault | •Go to "Wiring Inspection" procedure. |
| History/Pending Fault | •Fault is intermittent caused by poor contact in "Safety Power Window" or "Safety Power Window"'s connector or was repaired and "IBU-BCM" memory was not cleared. •Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. •Repair or replace as necessary, go to "Verification of Repair" procedure. |
