Engine Coolant Temperature Sensor (ECTS) - Water Pump

  1. Remove the engine room under cover.

    (Refer to " Removal And Installation  ")

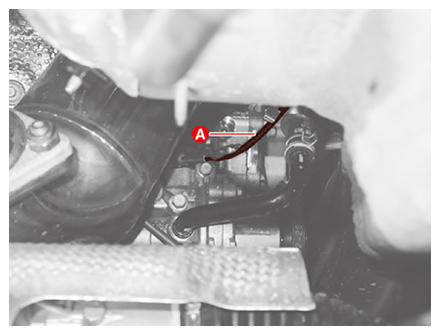

  2. Disconnect the ECTS connector (A).
    G13837466Courtesy of KIA MOTORS AMERICA, INC.

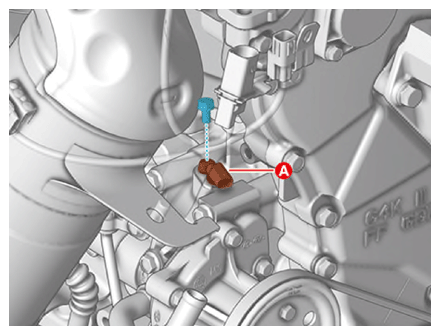

  3. Remove the ECTS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13837467Courtesy of KIA MOTORS AMERICA, INC.
