Engine Coolant Temperature Sensor (ECTS) - ITM

  1. Remove the air cleaner assembly.

    (Refer to " Removal And Installation  ")

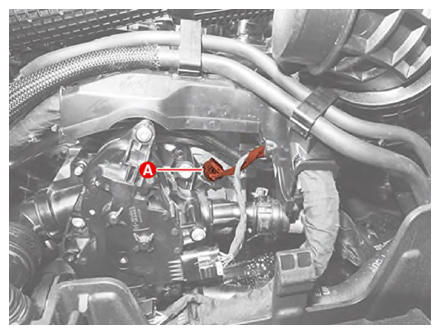

  2. Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
    G13837464Courtesy of KIA MOTORS AMERICA, INC.

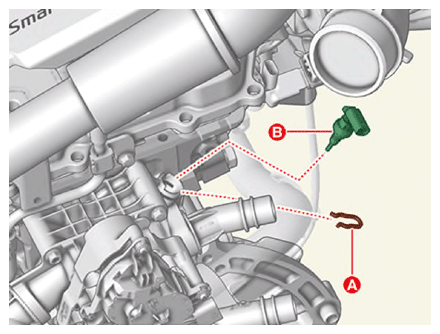

  3. Remove the ECTS (B) after removing the fixing clip (A).
    G13837465Courtesy of KIA MOTORS AMERICA, INC.
