Engine Coolant Temperature Sensor (ECTS) - Cylinder Block

  1. Remove the intake manifold.

    (Refer to " Removal And Installation  ")

  2. Remove the injector foam (A).
    G13837468Courtesy of KIA MOTORS AMERICA, INC.

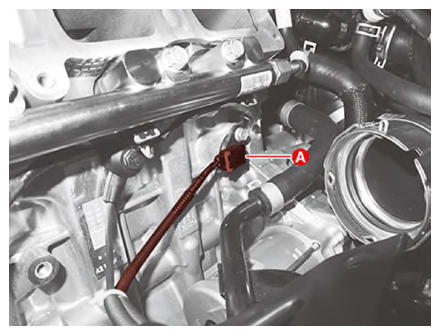

  3. Disconnect the ECTS connector (A).
    G13837469Courtesy of KIA MOTORS AMERICA, INC.

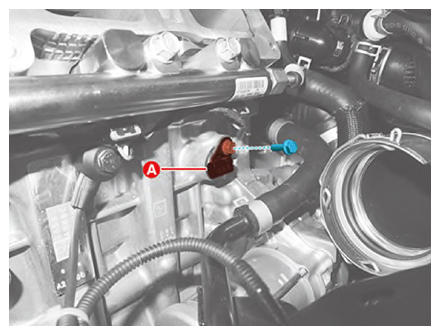

  4. Remove the ECTS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13837470Courtesy of KIA MOTORS AMERICA, INC.
