Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.

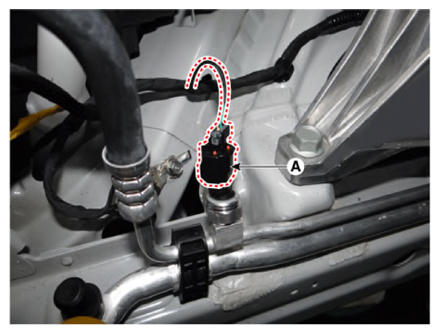

  3. Press the lock pin and disconnect the A/C pressure transducer connector (A).
    G13836419Courtesy of KIA MOTORS AMERICA, INC.

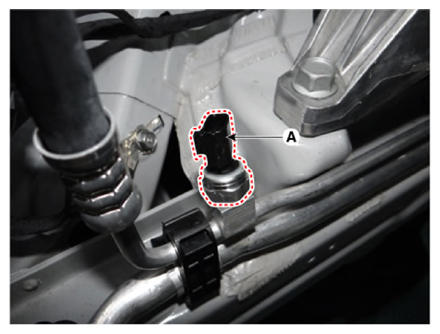

  4. Remove the A/C pressure transducer (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13836420Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Be careful not to bend the liquid and suction pipe.
  5. Install in the reverse order of removal.
    NOTE:
    • When installing, replace it with a new O-ring.
