Repair Procedures: Inspection

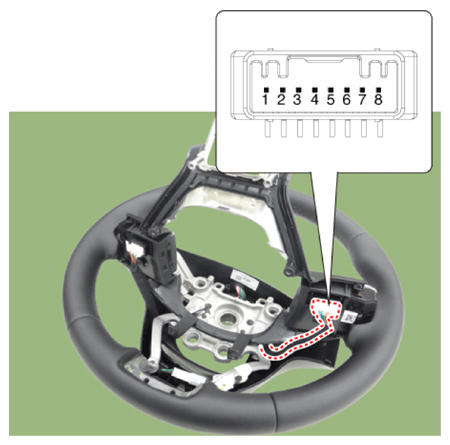

Check for resistance between terminals in each switch position.

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (±3%)
Pause	2-6	610 Ω
Speed (Down)		910 Ω
Speed (Up)		1.38 kΩ
Cruise ON/OFF		2.13 kΩ
SCC		7.93 kΩ
Trip group	1-6	610 Ω
Trip (Up)		910 Ω
Trip (Down)		1.38 kΩ
Trip (OK)		2.13 kΩ
LFA		7.93 kΩ
