Circuit Inspection

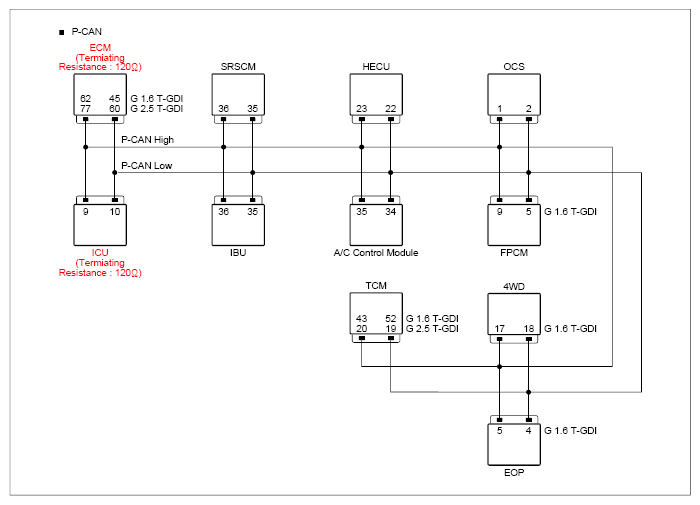

G13807562

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	AWD motor connector	17 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	AWD motor connector	18 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	AWD motor connector	17 (P-CAN high)	AWD ECU connector	18 (P-CAN low)	Approx. 60Ω

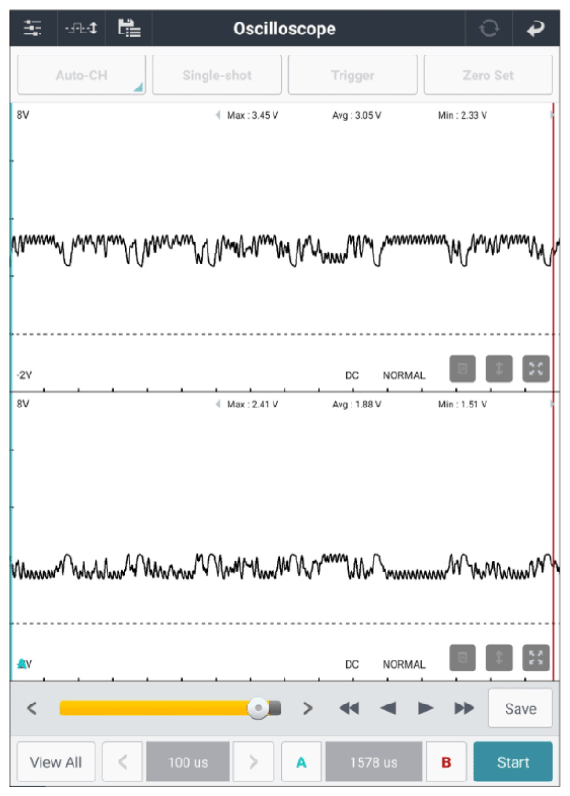

G13807563

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
