S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8

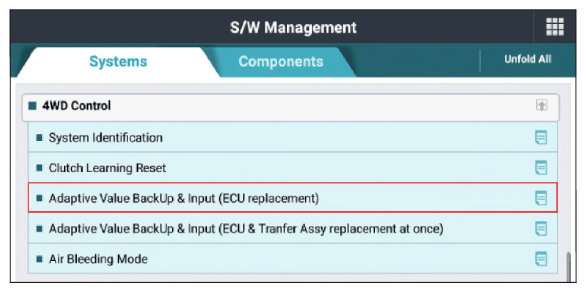

G13807497Courtesy of KIA MOTORS AMERICA, INC.

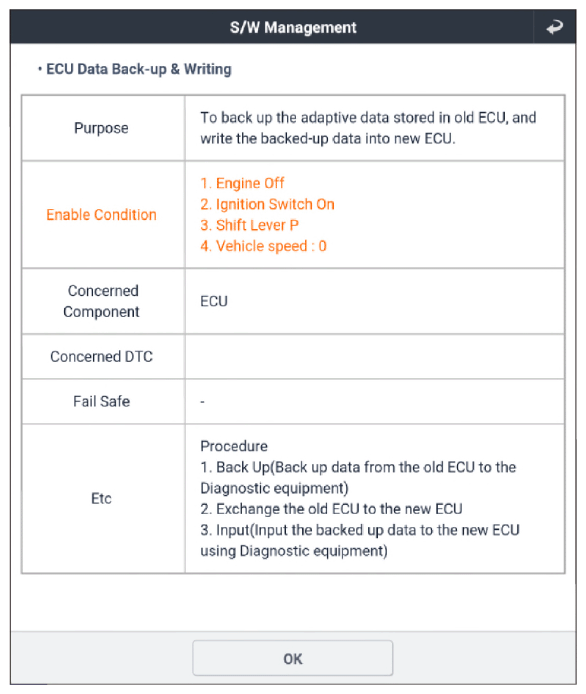

G13807498Courtesy of KIA MOTORS AMERICA, INC.

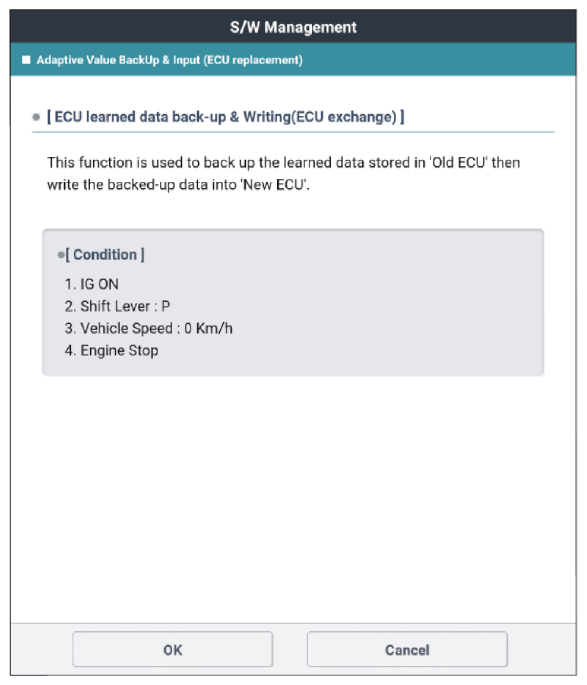

G13807499Courtesy of KIA MOTORS AMERICA, INC.

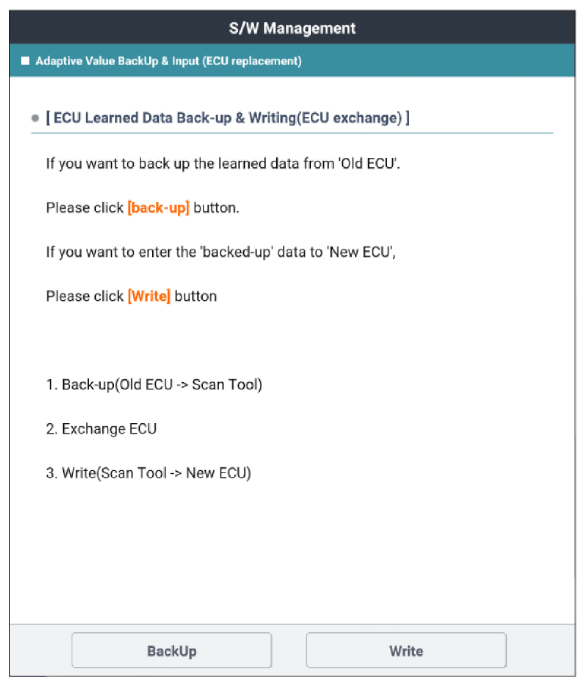

G13807500Courtesy of KIA MOTORS AMERICA, INC.

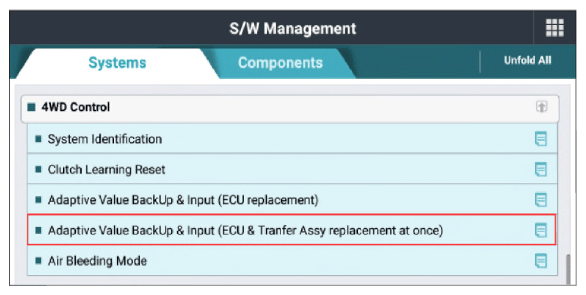

G13807501Courtesy of KIA MOTORS AMERICA, INC.
G13807502Courtesy of KIA MOTORS AMERICA, INC.

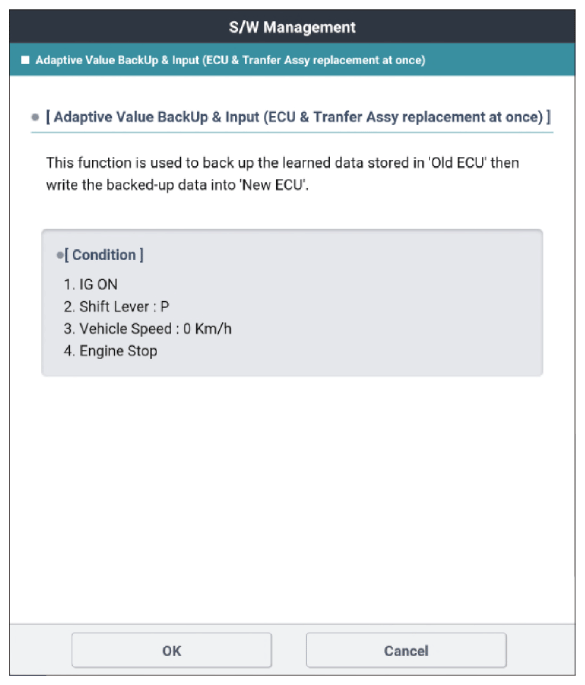

G13807503Courtesy of KIA MOTORS AMERICA, INC.

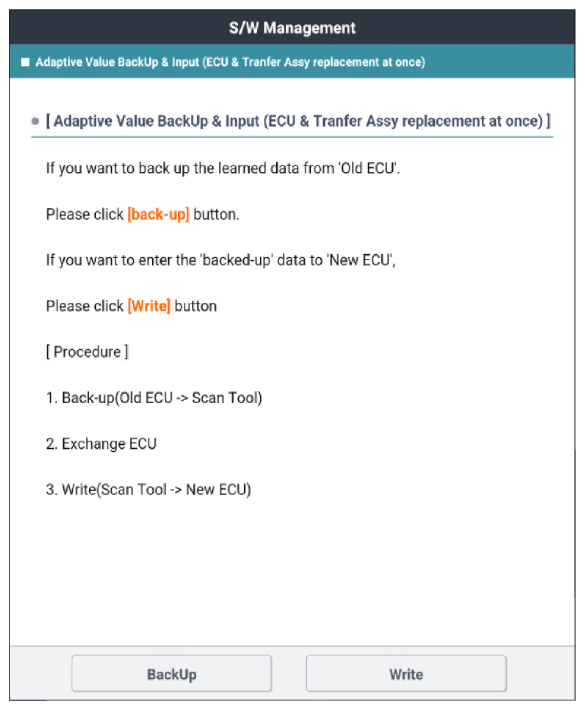

G13807504Courtesy of KIA MOTORS AMERICA, INC.
