Component Location

WARNING: This page is about a different variant/trim than selected.

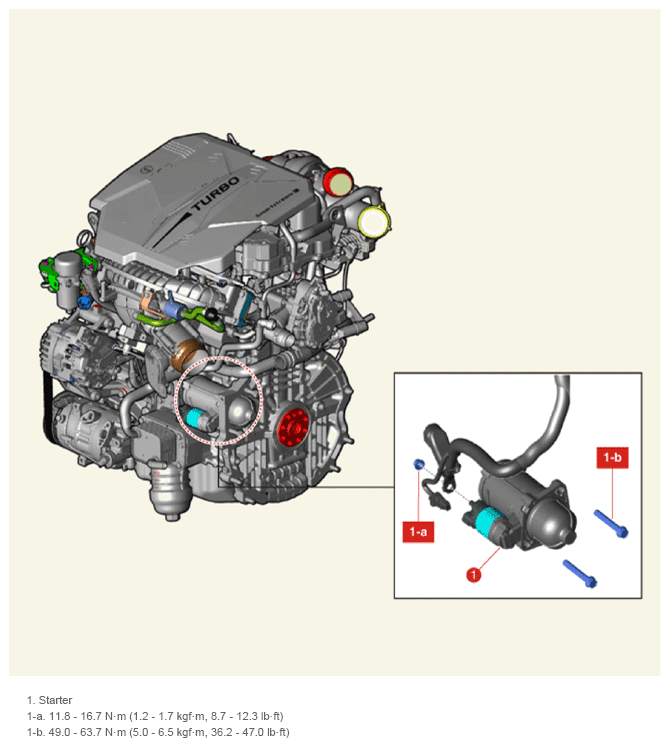

Fig 1: Starter Components Location With Torque Specification
G13837310Courtesy of KIA MOTORS AMERICA, INC.

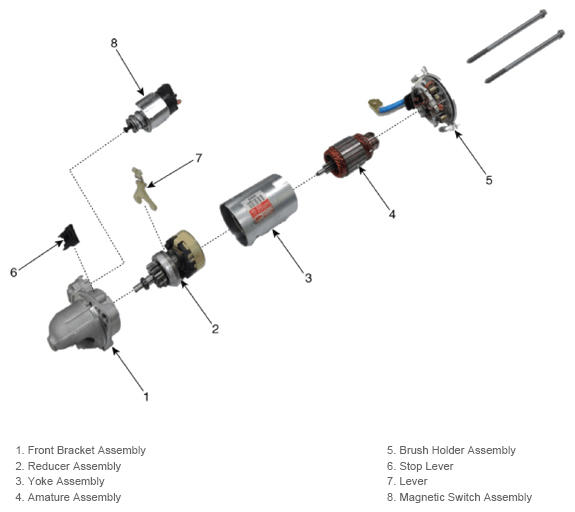

G13837311Courtesy of KIA MOTORS AMERICA, INC.
