Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

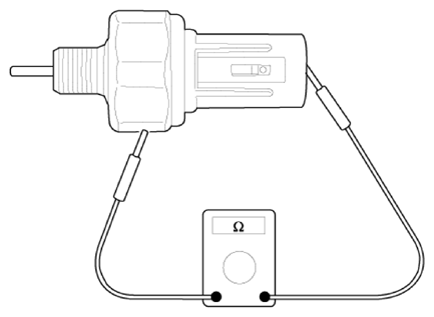

- Check the continuity between the terminal and the body with an ohmmeter.
If there is no continuity, replace the oil pressure sensor.

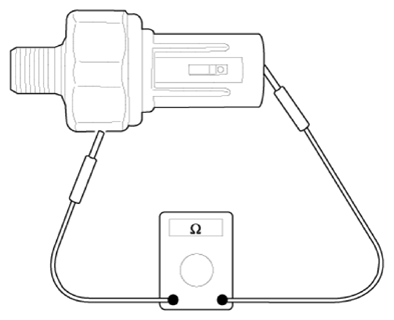

- Check the continuity between the terminal and the body when the fine wire is pushed.
If there is continuity even when the fine wire is pushed, replace the sensor.
- If there is no continuity when a 49.0kpa (0.5kg/cm2
, 7.1 psi) is applied through the oil hole, the switch is operating properly.
Check for air leakage. If air leaks, the diaphragm is broken. Replace it.
