Repair Procedures: Replacement: [Passenger]

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to " Replacement  ")

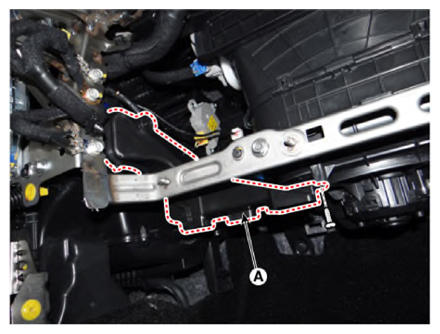

  3. Remove the shower duct [RH] (A) by loosening the mounting screws.
    G13836475Courtesy of KIA MOTORS AMERICA, INC.

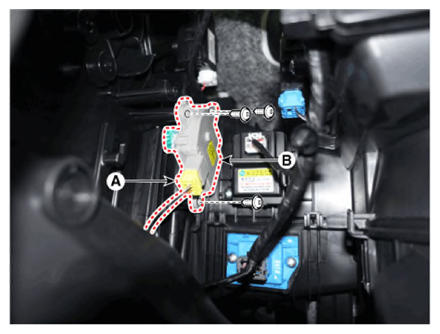

  4. Remove the temperature control actuator (B) by loosening the mounting screws after disconnecting the connector (A).
    G13836476Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
