Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Put on gloves to prevent hand injuries.
  1. Remove the trunk lid weatherstrip.

    (Refer to " Replacement  ")

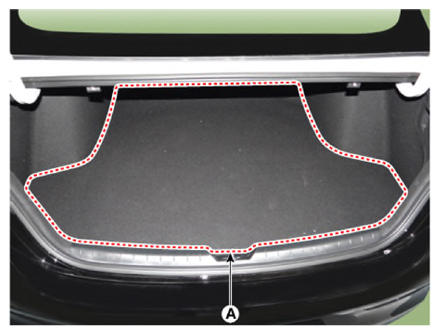

  2. Remove the luggage covering mat (A).
    G13835644Courtesy of KIA MOTORS AMERICA, INC.

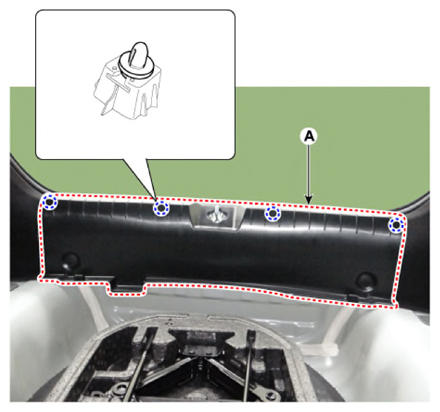

  3. Loosen the mounting clips and remove the rear transverse trim (A).
    G13835645Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.

    Information

    Replace any damaged clips.
