Diagnosis Procedure Using Diagnostic Device

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Follow procedure below using self-diagnostic device.

Connect self-diagnostic device to data link connector located in the lower of driver side crash pad and then turn the self-diagnosis device after ignition is ON.
Select the "vehicle model" and "TPMS" on KDS vehicle selection screen, then select OK.

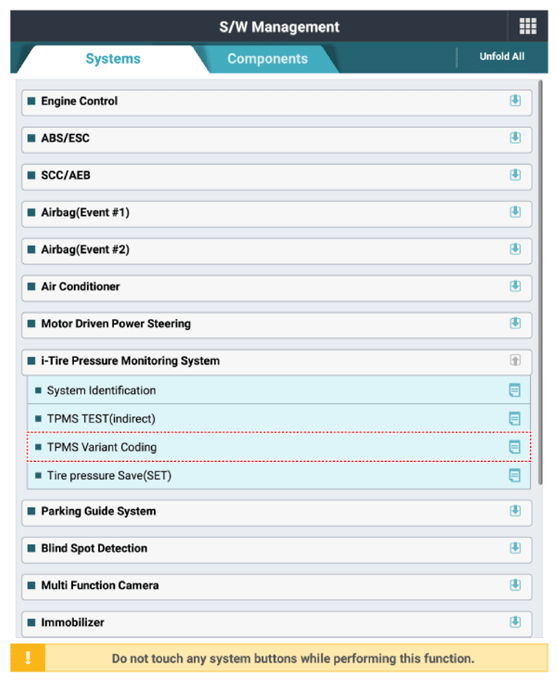

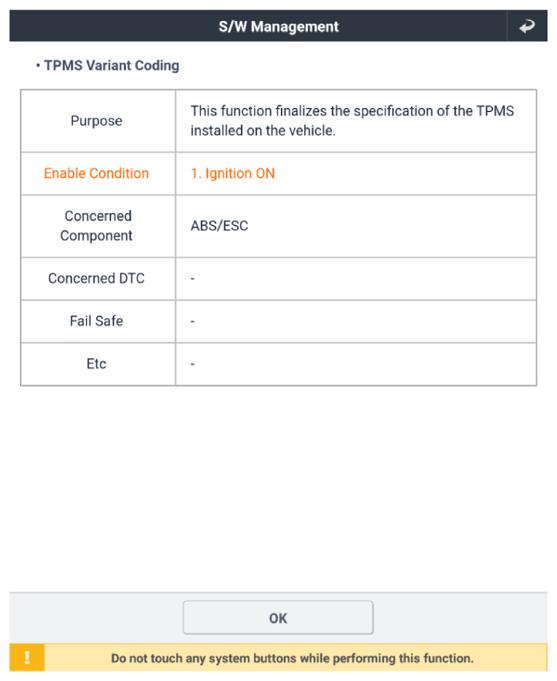

[TPMS Variant Coding]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

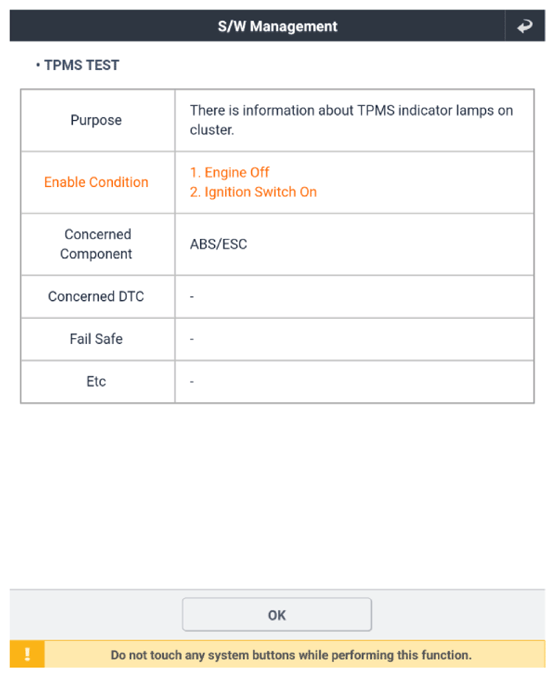

[TPMS TEST]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Each entry must be checked for normal operation of each sensor.
- After replacing the tires or sensors, check for proper operation of sensor after variant coding.
