Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tape around the tool and related parts to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.
  1. Disconnect the negative battery terminal.
  2. Remove the console upper cover.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

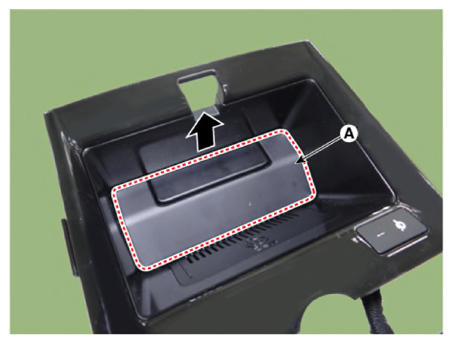

  3. Remove the wireless power charger pad (A).
    G13836738Courtesy of KIA MOTORS AMERICA, INC.

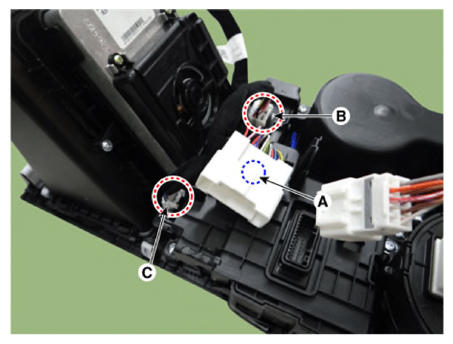

  4. Disconnect the main connector fastener (A), console switch connector (B) and wireless power charger indicator connector (C).
    G13836739Courtesy of KIA MOTORS AMERICA, INC.

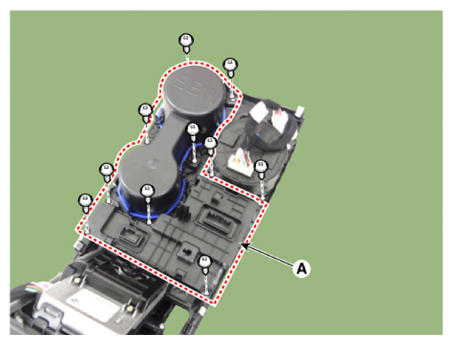

  5. Remove the cup holder assembly (A) after loosening the mounting screws.
    G13836740Courtesy of KIA MOTORS AMERICA, INC.

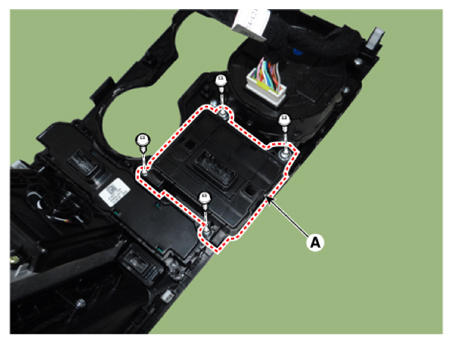

  6. Remove the console switch (A) after loosening the mounting screws.
    G13836741Courtesy of KIA MOTORS AMERICA, INC.
