Connector and Terminal function

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

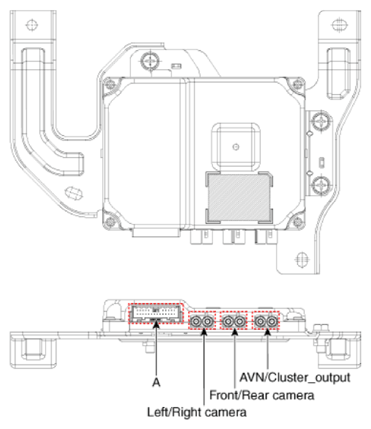

G13836724Courtesy of KIA MOTORS AMERICA, INC.

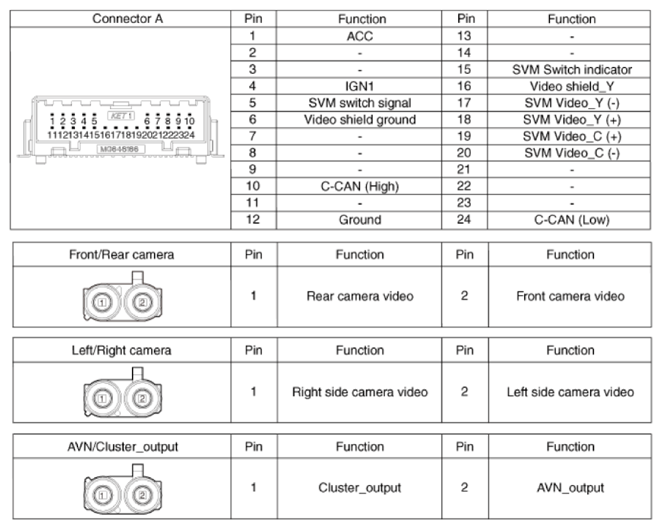

Fig 1: Surround View Monitor (SVM) ECU Connector End View And Terminal Description
G13836725Courtesy of KIA MOTORS AMERICA, INC.
