Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - " CRASH PAD CENTER PANEL  ")

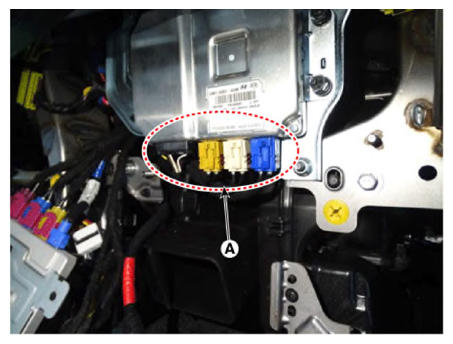

  3. Disconnect the SVM ECU connectors (A).
    G13836726Courtesy of KIA MOTORS AMERICA, INC.

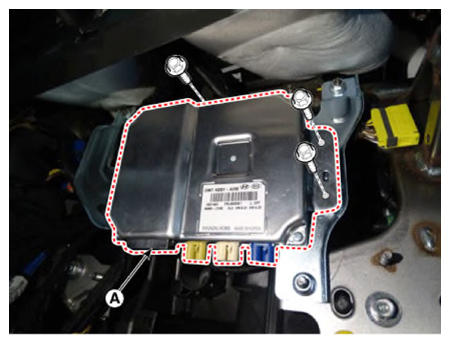

  4. Remove the SVM ECU (A) after loosening the mounting bolts.
    G13836727Courtesy of KIA MOTORS AMERICA, INC.
