Rear View Camera

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center rear combination lamp.

    (Refer to Body Electrical System - " REAR COMBINATION LAMP  ")

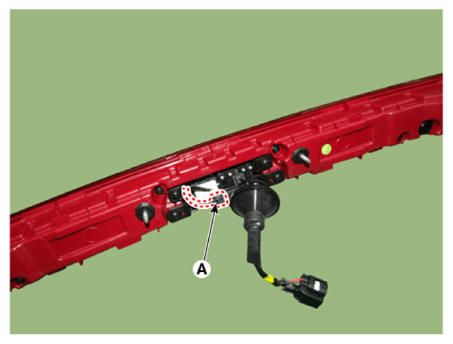

  3. Disconnect the trunk switch connector (A).
    G13836735Courtesy of KIA MOTORS AMERICA, INC.

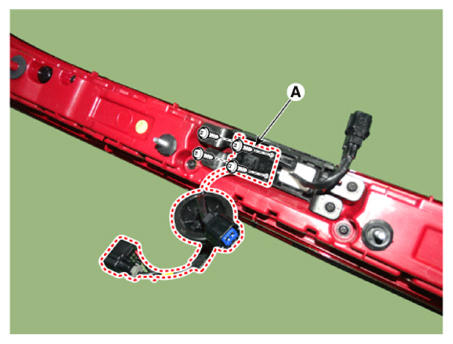

  4. Remove the rear view camera (A) after loosening the screws.
    G13836736Courtesy of KIA MOTORS AMERICA, INC.
