Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

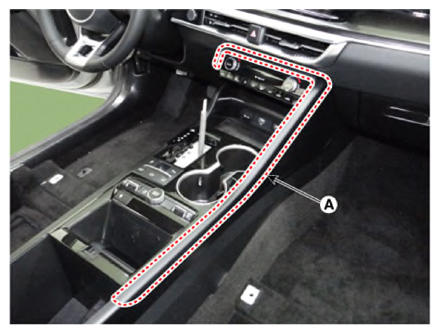

  2. Using a screwdriver or remover, remove the floor console upper garnish (A).
    G13836534Courtesy of KIA MOTORS AMERICA, INC.

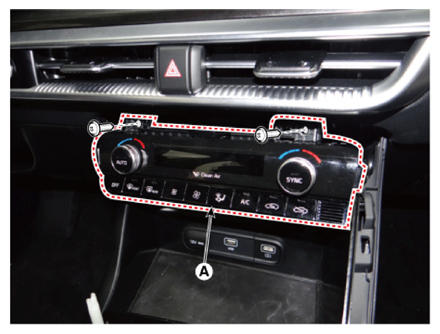

  3. Remove the A/C and heater controller unit (A) by loosening the mounting screws.
    G13836535Courtesy of KIA MOTORS AMERICA, INC.

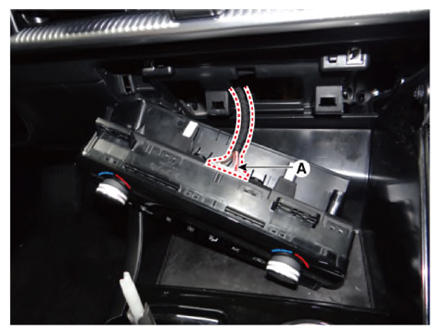

  4. Disconnect the A/C and heater control connector (A).
    G13836536Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
