Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to " Removal ")
Remove the lower arm mounting nut (A).

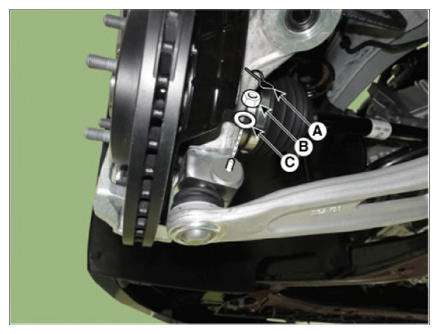

1. Remove the split pin (A).
2. Remove the lower arm mounting nut (B) and washer (C).
  Tightening torque:

  98.1 -117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

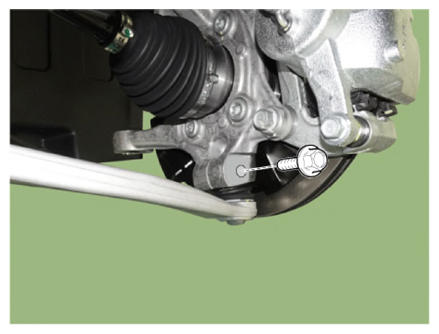

NOTE: To remove the nut (B), fix the bolt on the opposite side to prevent it from turning.

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect lower arm ball joint from the knuckle by using the SST (0K545-A9100).

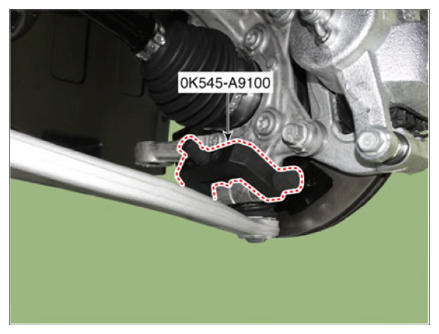

After removing bolts from the front knuckle, install and tighten the sub body bolt (A)

G13834815

Courtesy of KIA MOTORS AMERICA, INC.

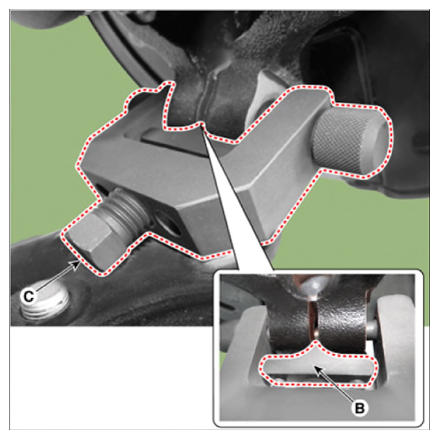

Input the sub body (B) between the front knuckle and the sub body bolt.

Tighten the bolt (C) of the sub body to broaden the gap of the front knuckle.

G13834816

Courtesy of KIA MOTORS AMERICA, INC.

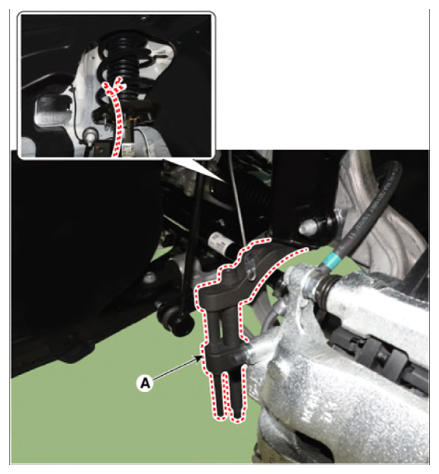

Install the safe wire and main body (A) between the front strut and the lower arm.

G13834817

Courtesy of KIA MOTORS AMERICA, INC.

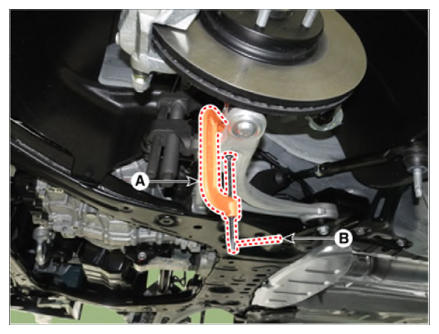

After installing a body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

G13834818

Courtesy of KIA MOTORS AMERICA, INC.

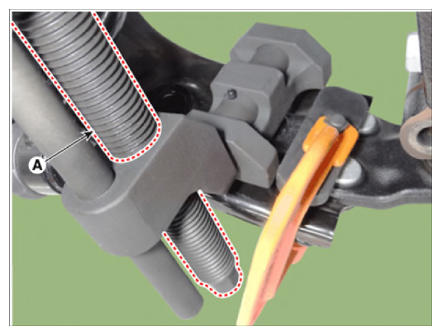

Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

G13834819

Courtesy of KIA MOTORS AMERICA, INC.

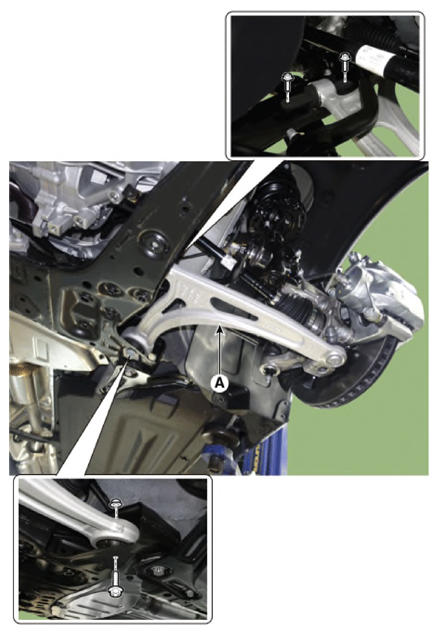

Remove the bolts and nuts and remove the lower arm (A) from the sub frame.
Tightening torque:

156.9-176.5 N.m (16.0- 18.0 kgf.m, 115.7-130.2 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
