Vehicle S/W Management: Notes

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G13810759Courtesy of KIA MOTORS AMERICA, INC.

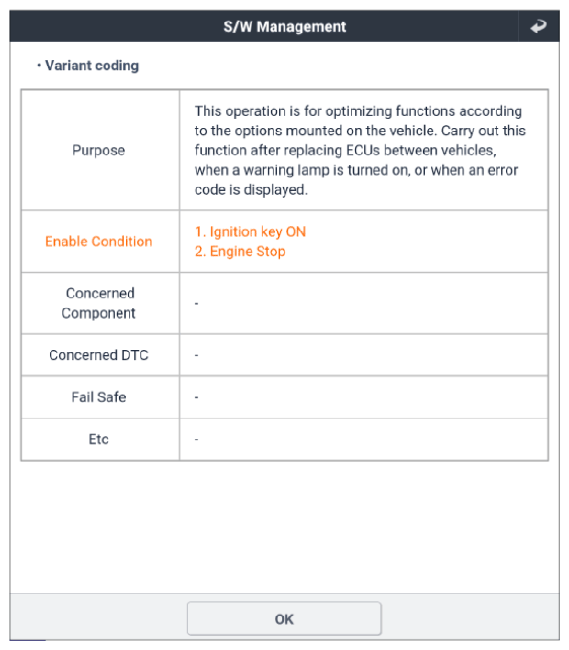

G13810760Courtesy of KIA MOTORS AMERICA, INC.

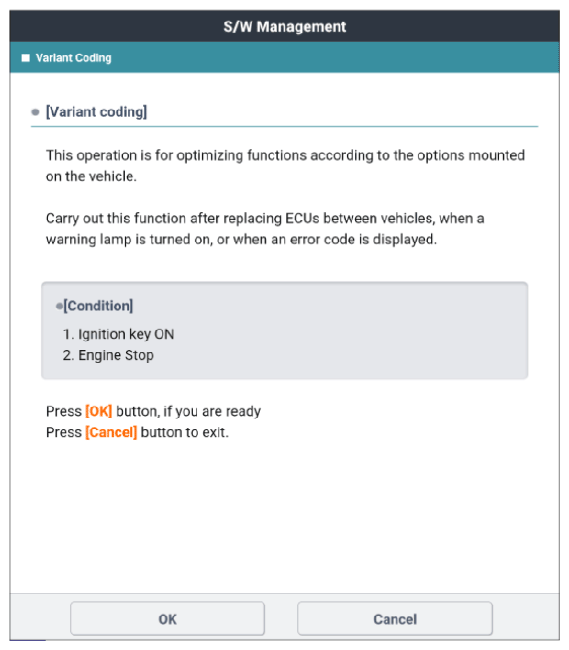

G13810761Courtesy of KIA MOTORS AMERICA, INC.

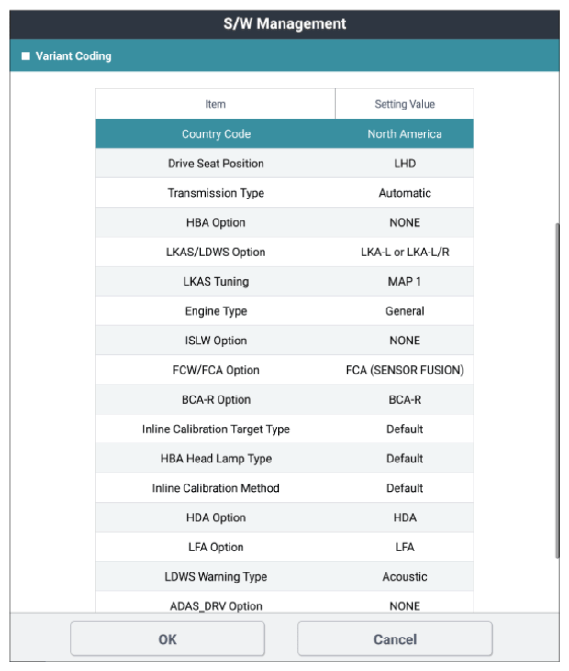

G13810762Courtesy of KIA MOTORS AMERICA, INC.
G13810763Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
