Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

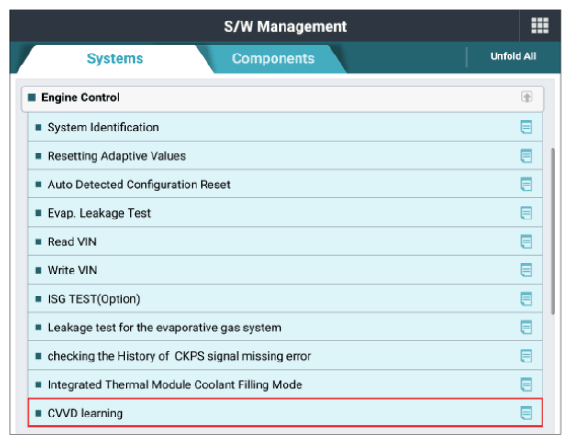

G13810110Courtesy of KIA MOTORS AMERICA, INC.

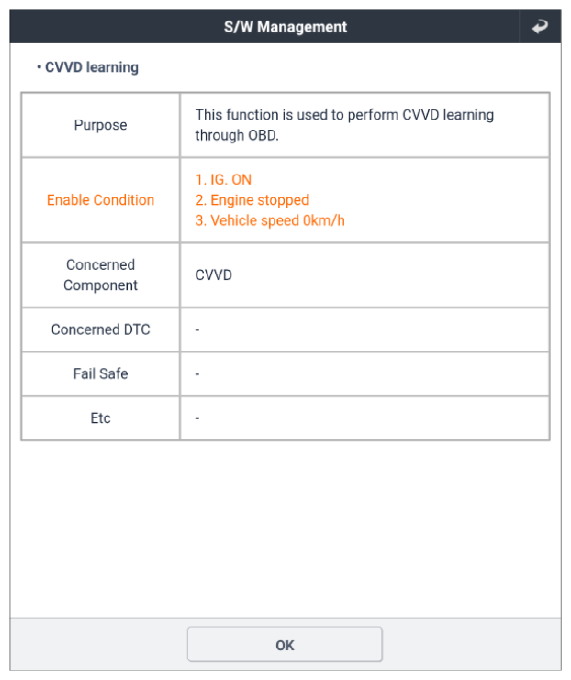

G13810111Courtesy of KIA MOTORS AMERICA, INC.

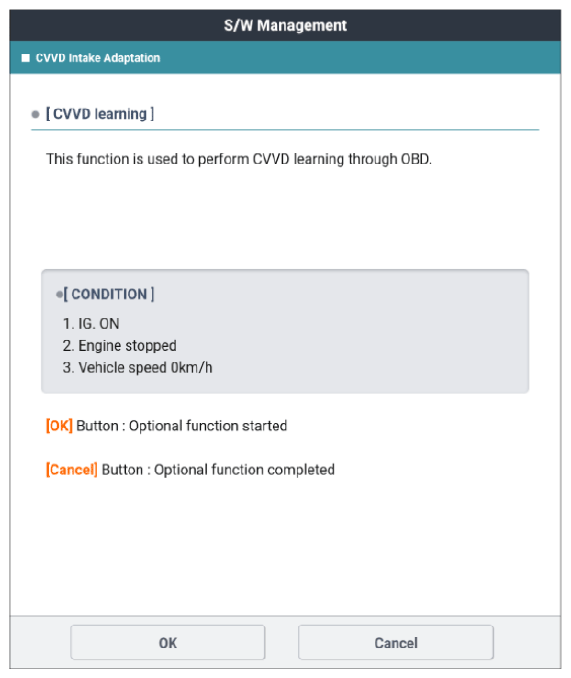

G13810112Courtesy of KIA MOTORS AMERICA, INC.

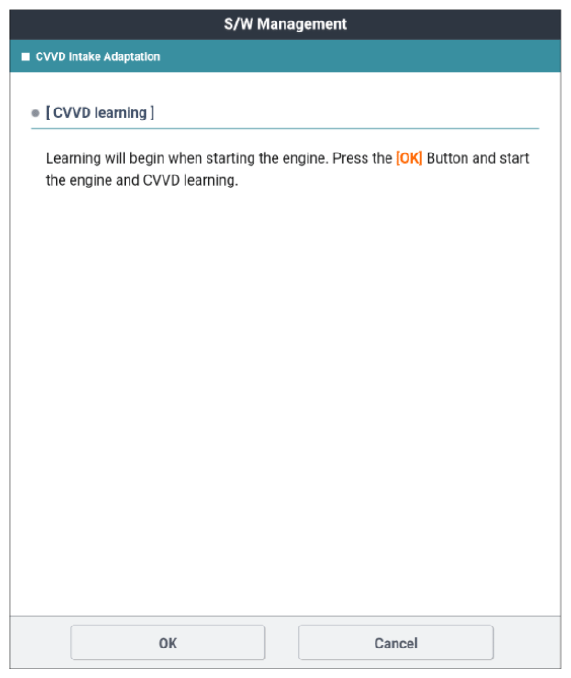

G13810113Courtesy of KIA MOTORS AMERICA, INC.
G13810114Courtesy of KIA MOTORS AMERICA, INC.
G13810115Courtesy of KIA MOTORS AMERICA, INC.
