Home >> Kia >> 2021 >> K5 GT-Line, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6L (7 Of 7) >> DTC U2001-00: Powertrain-Local CAN Communication Bus >> DTC Information >> Diagnostic Flow Chart

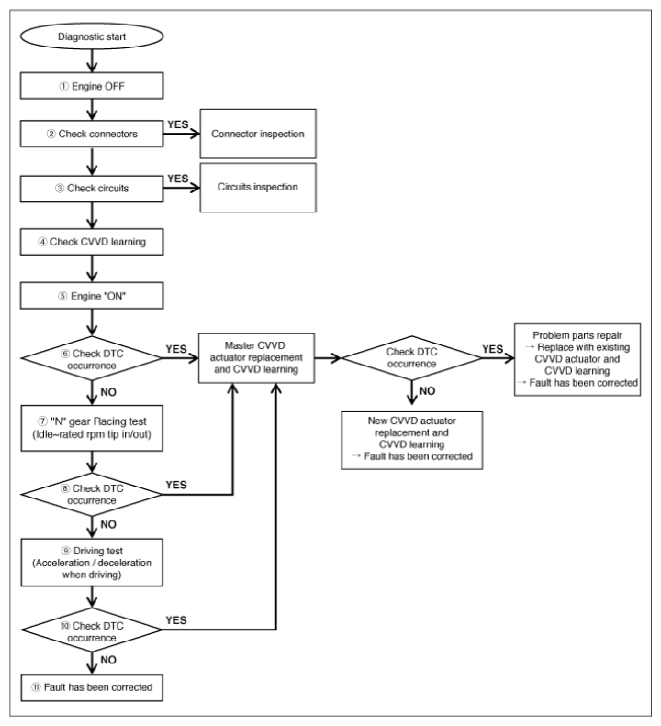

Diagnostic Flow Chart

G13810093Courtesy of KIA MOTORS AMERICA, INC.
