Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

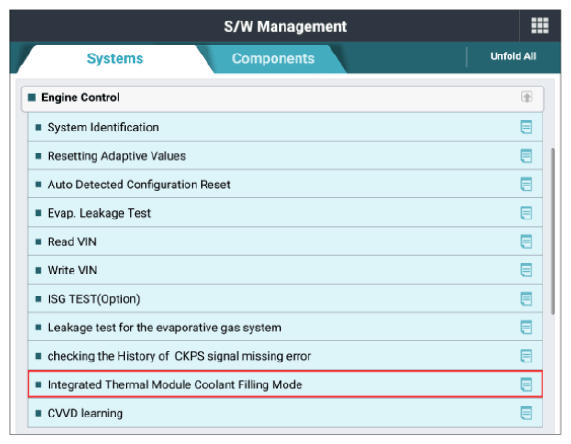

G13809995Courtesy of KIA MOTORS AMERICA, INC.

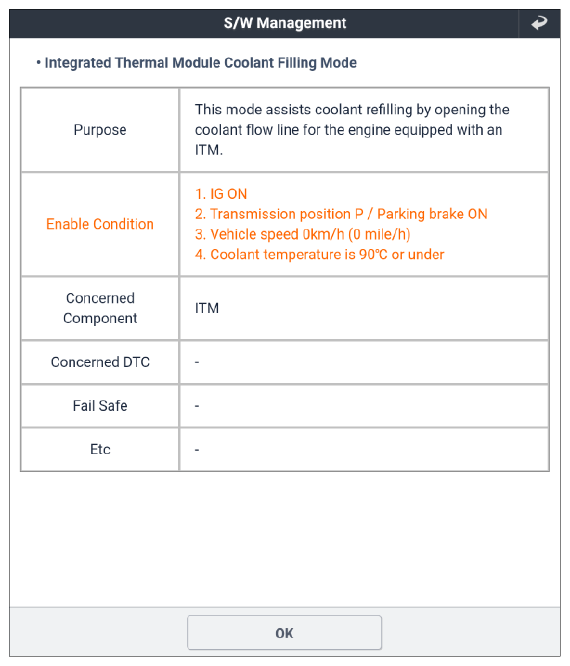

G13809996Courtesy of KIA MOTORS AMERICA, INC.

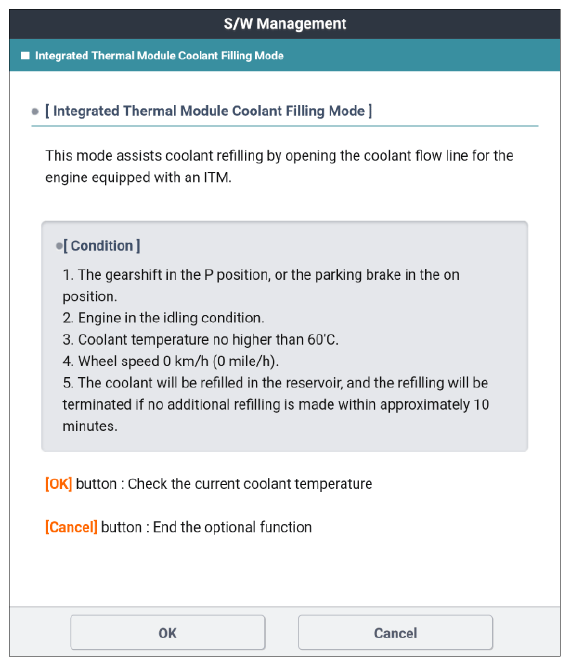

G13809997Courtesy of KIA MOTORS AMERICA, INC.

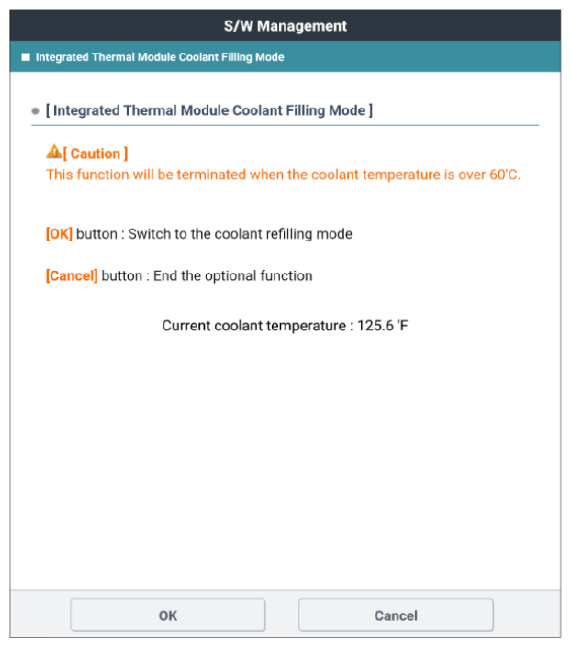

G13809998Courtesy of KIA MOTORS AMERICA, INC.

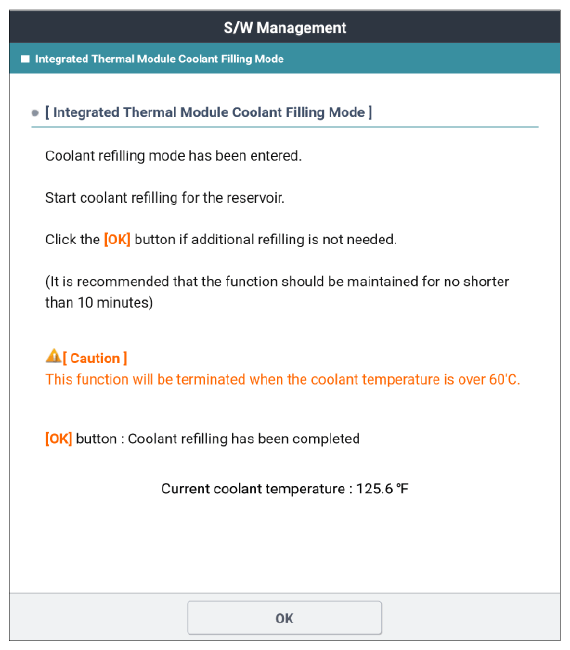

G13809999Courtesy of KIA MOTORS AMERICA, INC.
G13810000Courtesy of KIA MOTORS AMERICA, INC.
