Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

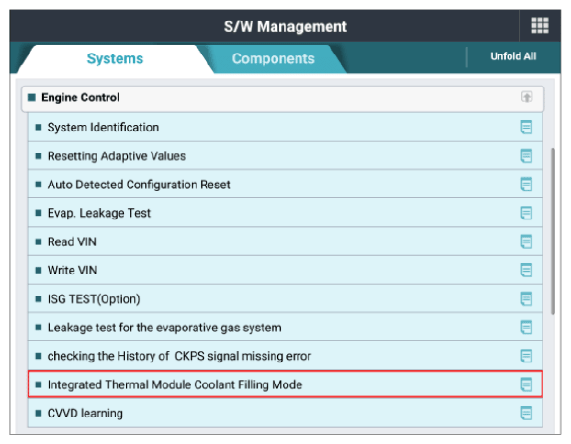

G13809984Courtesy of KIA MOTORS AMERICA, INC.

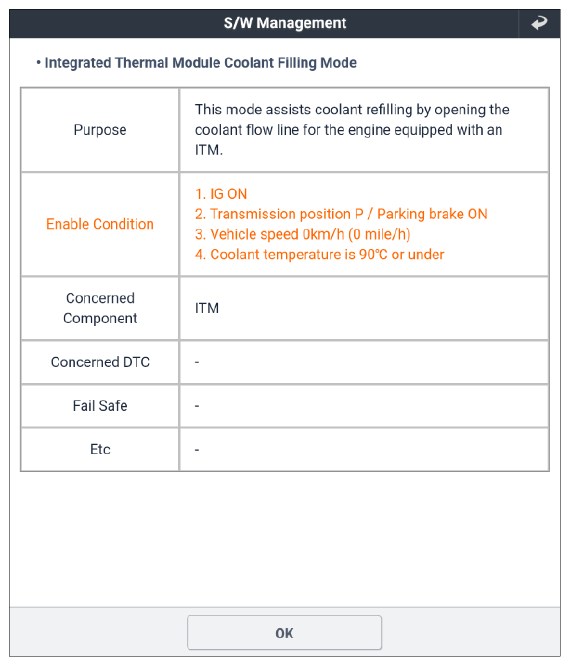

G13809985Courtesy of KIA MOTORS AMERICA, INC.

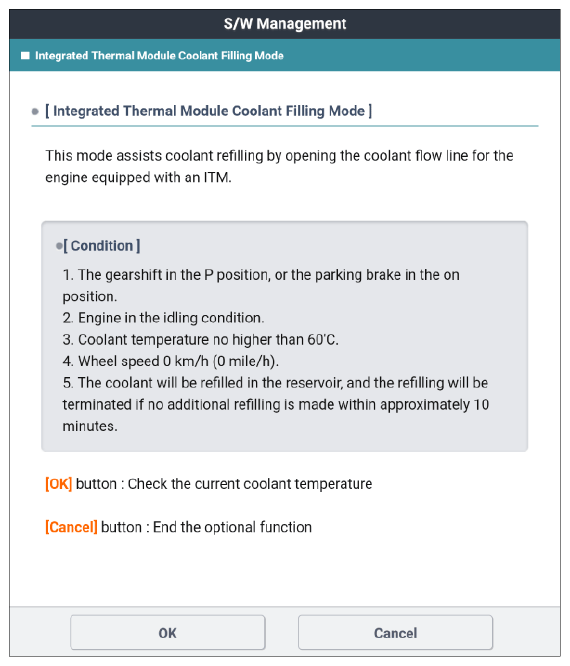

G13809986Courtesy of KIA MOTORS AMERICA, INC.

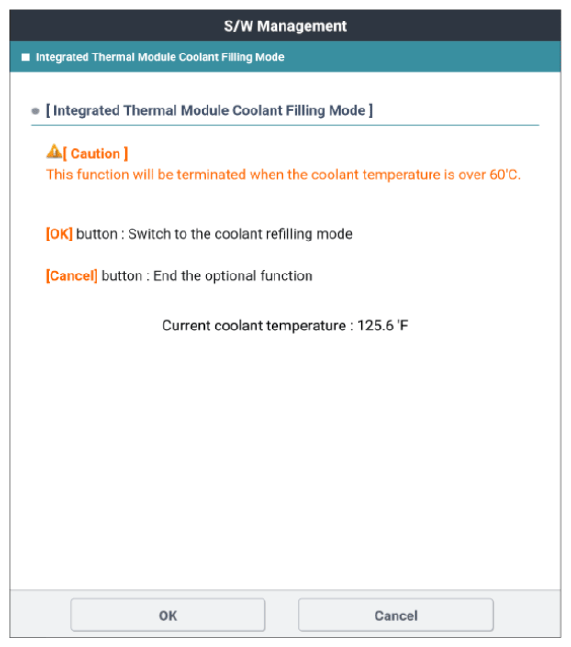

G13809987Courtesy of KIA MOTORS AMERICA, INC.

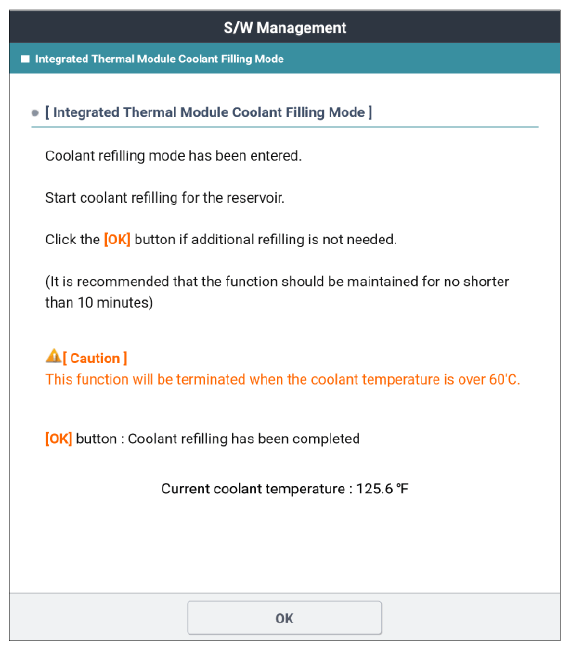

G13809988Courtesy of KIA MOTORS AMERICA, INC.

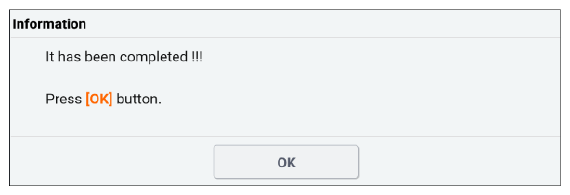

G13809989Courtesy of KIA MOTORS AMERICA, INC.
