System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G13817386Courtesy of KIA MOTORS AMERICA, INC.

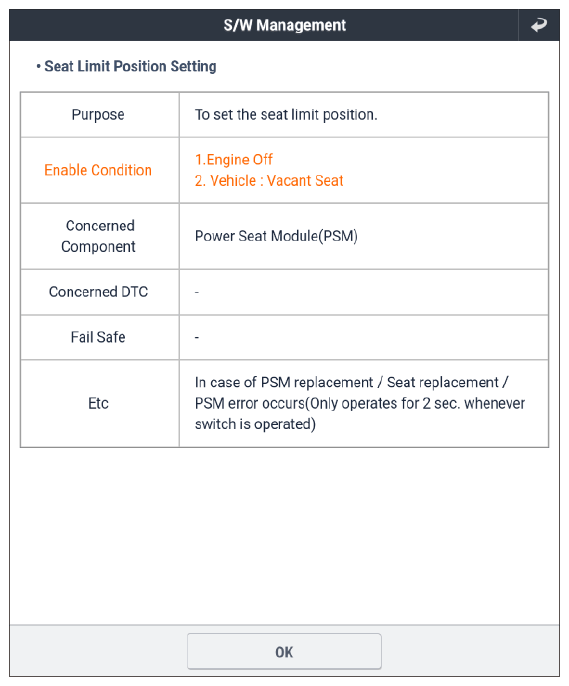

G13817387Courtesy of KIA MOTORS AMERICA, INC.

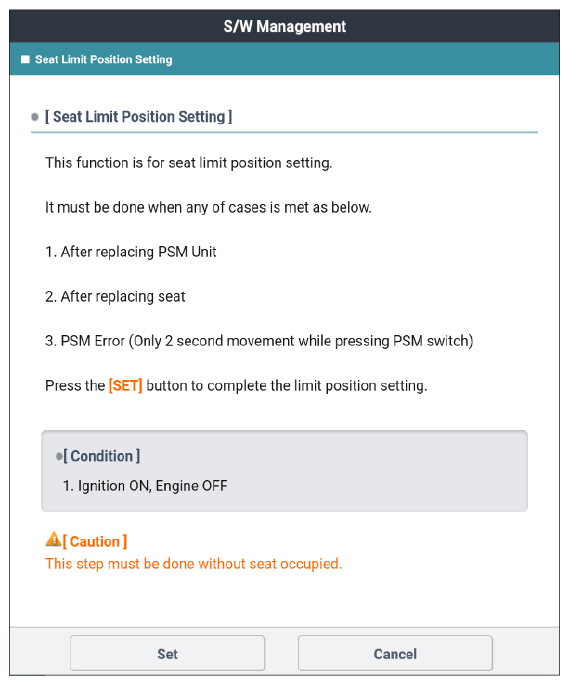

G13817388Courtesy of KIA MOTORS AMERICA, INC.
G13817389Courtesy of KIA MOTORS AMERICA, INC.

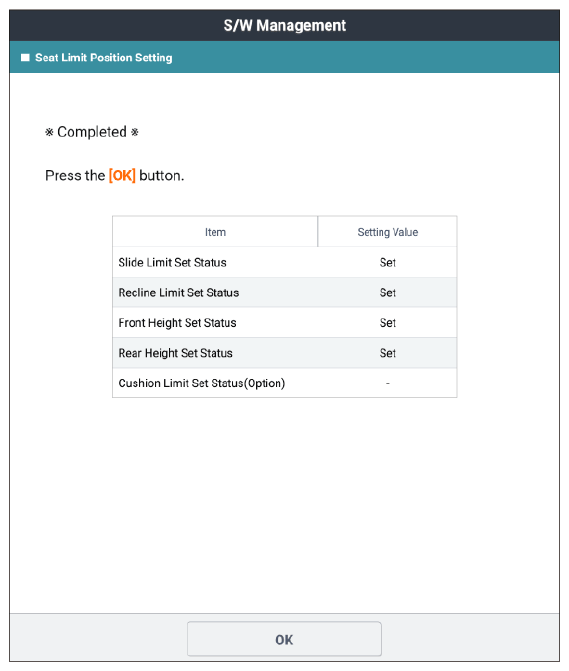

G13817390Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
