Circuit Inspection

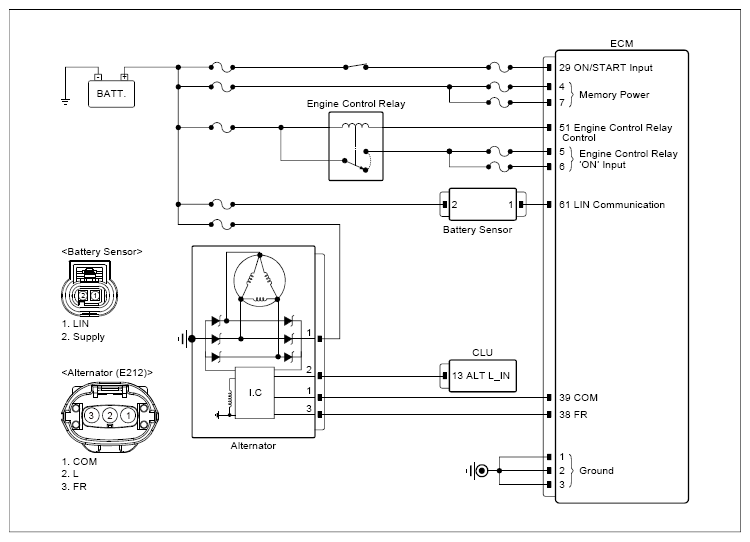

G13292759

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Battery sensor connector	1 (power)	Chassis ground	-	Approx. 5V
	Battery sensor connector	2 (current)	Chassis ground	-	Approx. 0V
	Battery sensor connector	3 (temperature)	Chassis ground	-	Approx. 5V
Ignition "ON".	Battery sensor connector	1 (power)	Battery sensor connector	2 (current)	Fig.1
Ignition "ON".	Battery sensor connector	3 (temperature)	Chassis ground	-	Fig.1

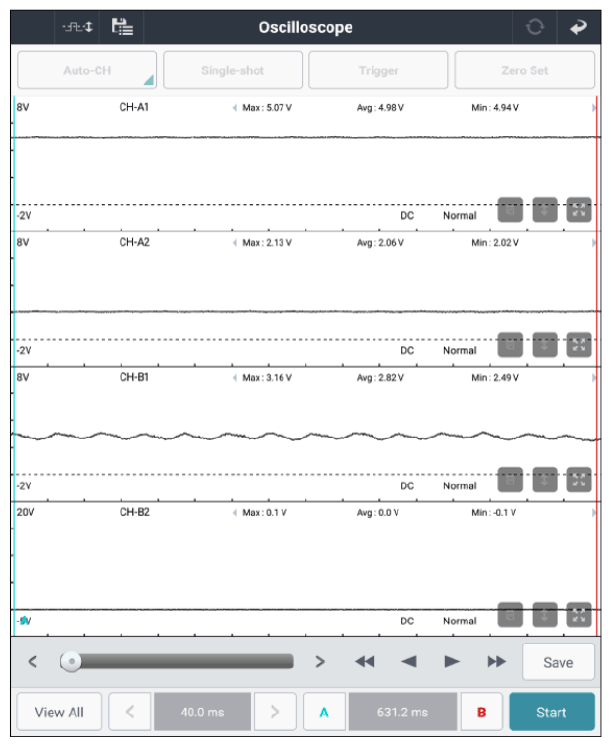

G13292760

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the battery sensor and go to "VERIFICATION OF REPAIR " procedure.
