Component Inspection

  1. Ignition Switch "OFF".
  2. Disconnect the battery negative (-) cable.
  3. Remove the air cleaner

    (Refer to Engine Mechanical System - AIR CLEANER

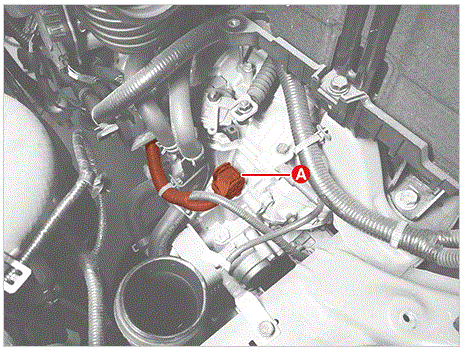

  4. Disconnect the IVT main connector (A).
    G00599904Courtesy of KIA MOTORS AMERICA, INC.
  5. Measure the resistance between power terminal (5) and signal terminal (12).

    Specification :  5.3± 0.3Ω

    G00599905Courtesy of KIA MOTORS AMERICA, INC.
