Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

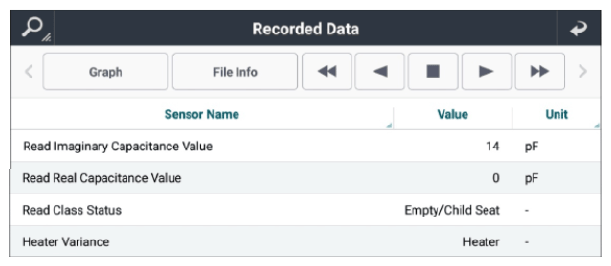

Fig.1 |
Good
- Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "BODY SENSOR RESET " and "Verification of Repair" procedure.
No Good
- Go to "SYSTEM INSPECTION " procedure.
