Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center garnish.

    (Refer to Body - "CRASH PAD CENTER GARNISH ASSEMBLY ")

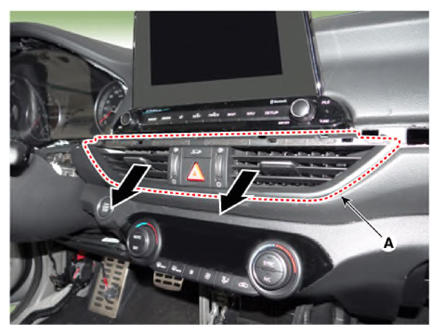

  3. Remove the center facial vent (A).
    G13306500Courtesy of KIA MOTORS AMERICA, INC.

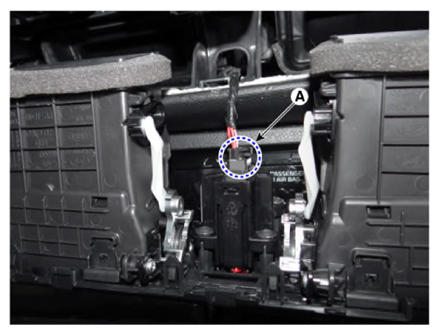

  4. Disconnect the center facial vent connector (A).
    G13306501Courtesy of KIA MOTORS AMERICA, INC.

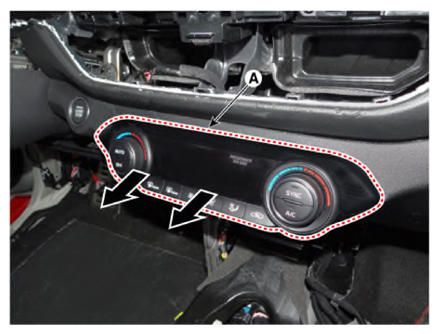

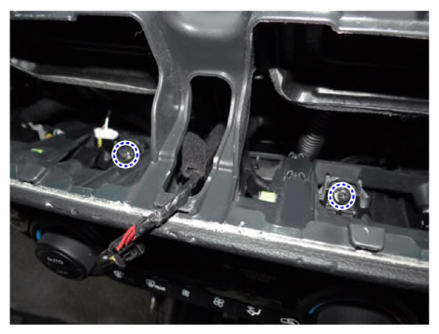

  5. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G13306502Courtesy of KIA MOTORS AMERICA, INC.
    G13306503Courtesy of KIA MOTORS AMERICA, INC.

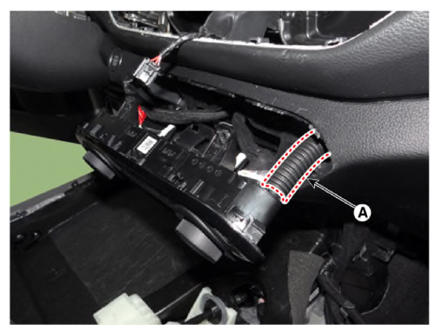

  6. Disconnect the heater controller assembly hose (A).
    G13306504Courtesy of KIA MOTORS AMERICA, INC.

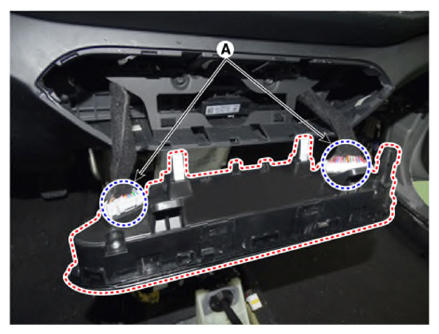

  7. Disconnect the A/C & heater controller connectors (A).
    G13306505Courtesy of KIA MOTORS AMERICA, INC.
  8. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
