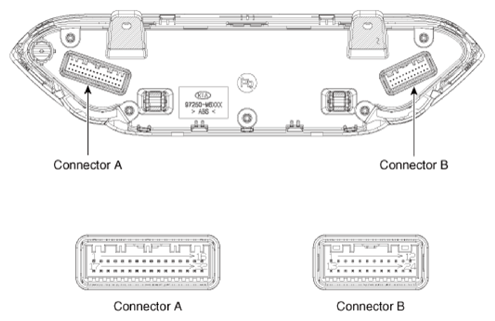

Components And Components Location: Components
CONNECTOR PIN DESCRIPTION (A)
| Pin NO | Function | Pin NO | Function |
|---|---|---|---|
| 1 | Battery (+) | 17 | IGN2 |
| 2 | ISG B+ | 18 | IGN1 |
| 3 | ILL+ (TAIL) | 19 | Blower motor (+) |
| 4 | Sensor ground REF (+5V) | 20 | HTD (Rear defog indicator) |
| 5 | Mode control actuator (Feedback) | 21 | Rear defog switch |
| 6 | Driver's temperature control actuator (Feedback) | 22 | Photo sensor (-)_LH |
| 7 | Intake actuator (Feedback) | 23 | Photo sensor (-)_RH |
| 8 | EVAP sensor (+) | 24 | Detent out (-) |
| 9 | AMB sensor (+) | 25 | P_CAN High |
| 10 | Mode control actuator (Vent) | 26 | P_CAN Low |
| 11 | Mode control actuator (Def) | 27 | FET Drain (Feedback) |
| 12 | Driver's temperature control actuator (Cool) | 28 | FET (Gate) |
| 13 | Driver's temperature control actuator (Warm) | 29 | ECV+ |
| 14 | Intake actuator (Recirculation) | 30 | ECV - (Ground) |
| 15 | Intake actuator (Feedback) | 31 | Sensor ground |
| 16 | ILL- (RHEO) | 32 | Ground |
CONNECTOR PIN DESCRIPTION (B)
| Pin NO | Function | Pin NO | Function |
|---|---|---|---|
| 1 | Passenger's temperature control actuator (Feedback) | 13 | PAB On signal |
| 2 | Passenger's temperature control actuator (Cool) | 14 | PAB IGN1 |
| 3 | Passenger's temperature control actuator (Warm) | 15 | PAB Off signal |
| 4 | Defogging actuator (Feedback) | 16 | Auto defogging sensor signal |
| 5 | Defogging actuator (On) | 17 | Rear SBR (LH) |
| 6 | Defogging actuator (Off) | 18 | SBR |
| 7 | - | 19 | Rear SBR (Center) |
| 8 | - | 20 | - |
| 9 | - | 21 | - |
| 10 | - | 22 | - |
| 11 | Blower relay | 23 | Rear SBR (RH) |
| 12 | Blower PWM | 24 | Ground |
