Repair Procedures: Removal

[Suction & Liquid tube assembly]

1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
2. Disconnect the negative (-) battery terminal.
3. Recover the refrigerant with a recovery/charging station.

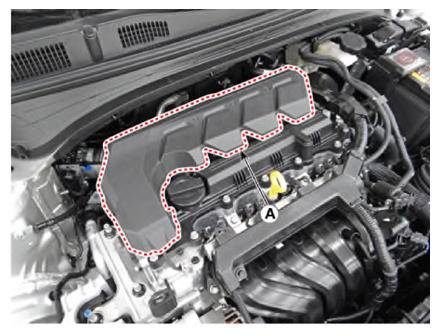

4. Remove the engine cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the bolts and the expansion valve (A) from the evaporator core.

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

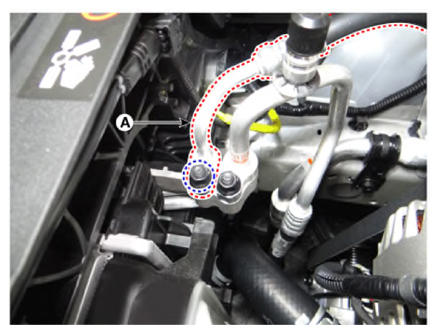

6. After loosening the mounting nut, remove the suction line (A).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

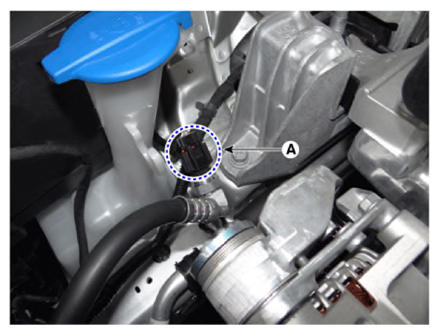

7. Disconnect the A/C pressure transducer connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the engine room under cover.

   G 2.0 MPI NU (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

   1.6 DOHC D-CVVT MPI (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

9. Remove the bolts, then disconnect the suction line (A) from the compressor.

   Tightening torque:

   21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

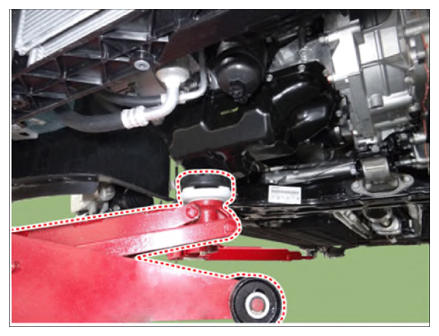

10. Support the jack on the edge of the oil pan.

    Courtesy of KIA MOTORS AMERICA, INC.

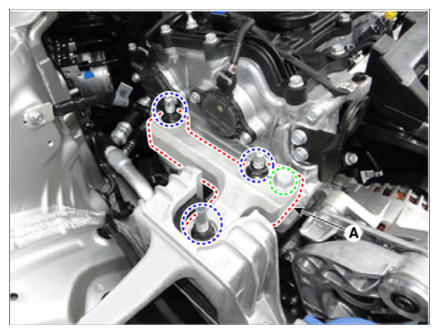

11. After loosening the mounting bolt and nuts, remove the engine mounting support bracket (A).

    Tightening torque:

    58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

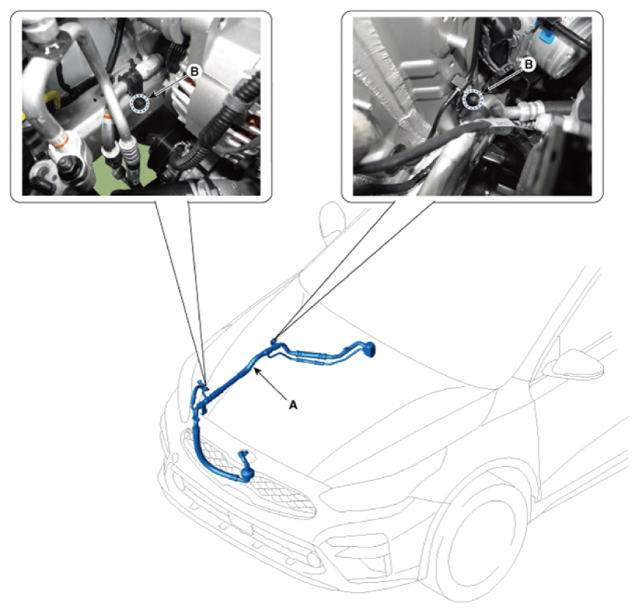

12. Loosen the bracket mounting bolt (B) from suctions liquid assembly (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the refrigerant line assembly to the upper of engine room.

[Discharge tube assembly]

1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
2. Disconnect the negative (-) battery terminal.
3. Recover the refrigerant with a recovery charging station.

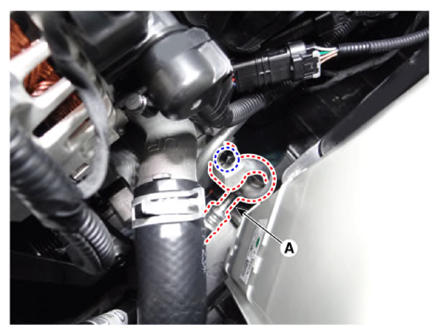

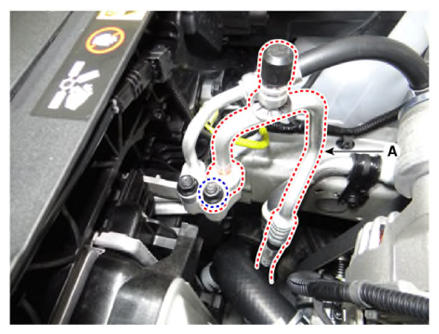

4. After loosening the mounting nut, remove the discharge line (A).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

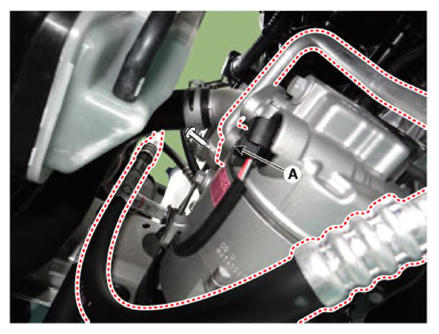

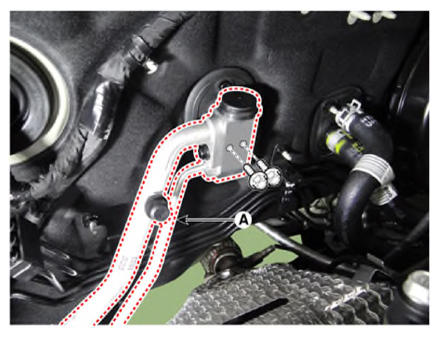

5. After loosening the mounting nut, remove the discharge tube assembly (A).

   Tightening torque:

   21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.
