Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the evaporator core.

    (Refer to Air Conditioning - "EVAPORATOR CORE ")

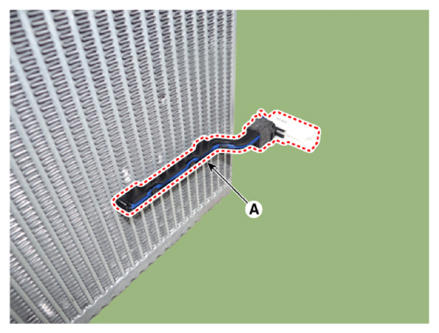

  3. Remove the evaporator temperature sensor (A) from the evaporator core.
    G13306414Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
