Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Remove the fuel sender.

    (Refer to Fuel Delivery System - "FUEL SENDER ")

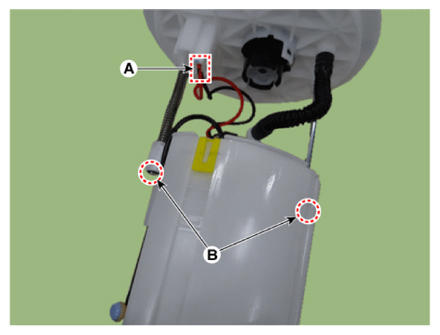

  3. Disconnect the fuel pump motor connector (A).
  4. Remove the head assembly after releasing the cushion fixing hooks (B).
    G13303929Courtesy of KIA MOTORS AMERICA, INC.

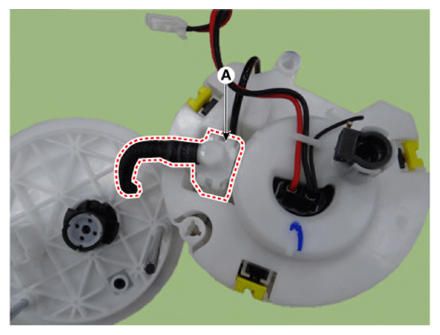

  5. Disconnect the fuel feed tube (A).
    G13303930Courtesy of KIA MOTORS AMERICA, INC.

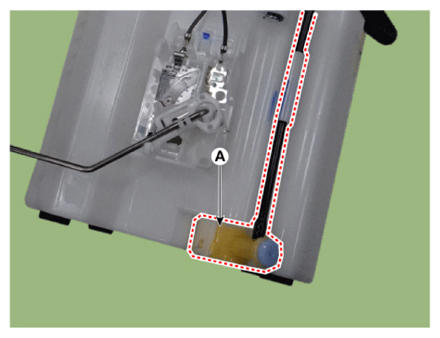

  6. Remove the return nozzle (A) after releasing the hook.
    G13303931Courtesy of KIA MOTORS AMERICA, INC.

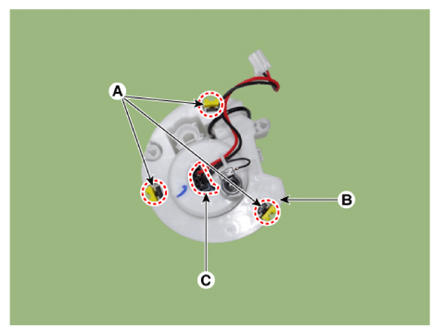

  7. Remove the reservoir cup (B) after releasing the fixing hooks (A).
  8. Disconnect the fuel pump motor connector (C).
    G13303932Courtesy of KIA MOTORS AMERICA, INC.

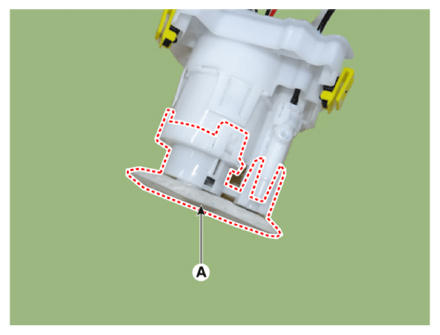

  9. Release the fixing hooks, and then remove the pre-filter (A).
    G13303933Courtesy of KIA MOTORS AMERICA, INC.

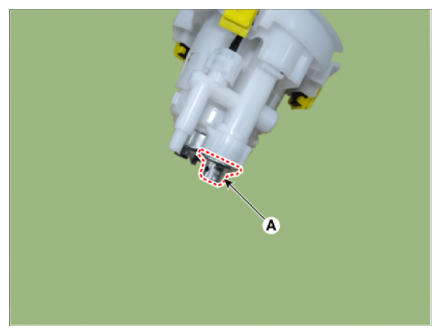

  10. Remove the fuel pressure regulator (A).
    G13303934Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
