Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Drive shaft joints require special grease, so do not add any other type of grease.
When replacing the boot band, it must be a new one.

Remove the front drive shaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

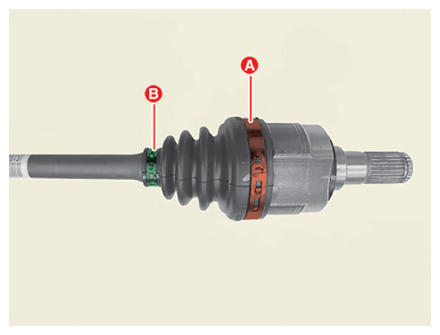

Remove the transaxle side large diameter (A) and small diameter (B) boot bands.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Use the right tool for each type of boot band as shown in the table below.

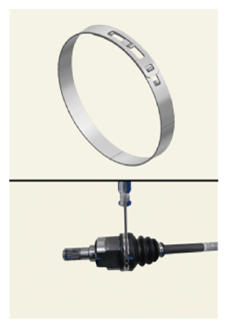

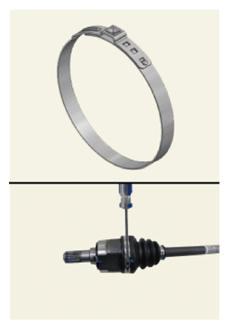

Ear type	Hook type	Hook type
Ear type	Hook type	[Low profile]

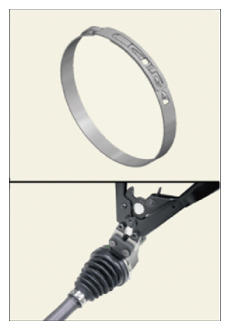

Driver (-)	Driver (-)	SST (0K495-2W000)
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.

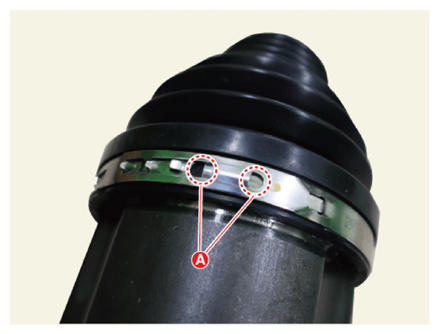

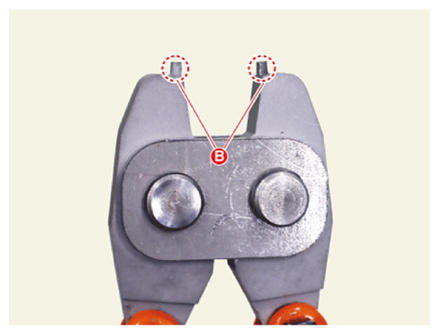

NOTE: When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown in the illustration below.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

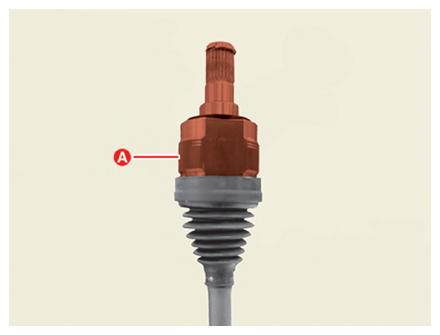

Remove the trans axle joint housing (A).

Courtesy of KIA MOTORS AMERICA, INC.

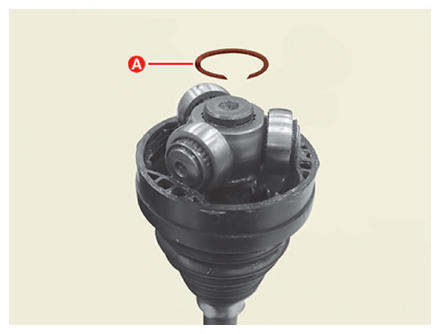

Remove the snap ring (A) using a snap ring pliers.

Courtesy of KIA MOTORS AMERICA, INC.

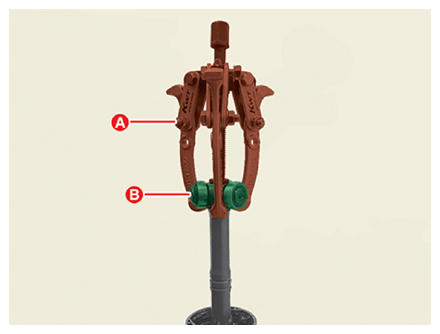

Remove the spider assembly (B) from the drive shaft using a puller (A).

Courtesy of KIA MOTORS AMERICA, INC.

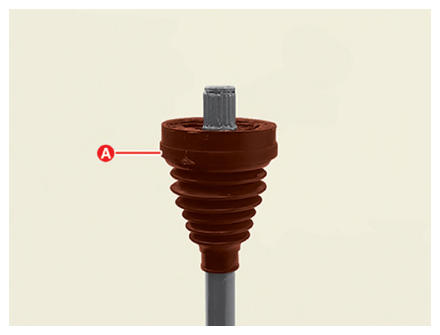

Remove trans axle side boot (A).

Courtesy of KIA MOTORS AMERICA, INC.
Clean the inside of the spider assembly and joint housing.
NOTE: Remove grease inside the housing as much as possible.
