Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

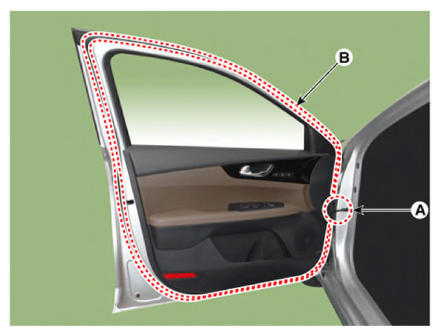

- Loosen the front door checker (A) mounting bolt.
Tightening torque:
21.6 - 31.4 N.m (2.2 - 3.2 Kgf.m, 15.9 - 23.1 lb.ft)
- Detach the clips, then remove the front door side weatherstrip (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse the removal procedure.
Information
Replace any damaged clips (or pin - type retainers).
