Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

  3. Remove the inside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

  4. Disconnect the connector (A) and then remove the trunk lid back panel (C) by loosening the nuts (B).

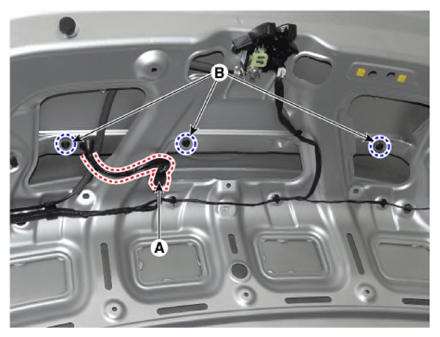

    G13306182Courtesy of KIA MOTORS AMERICA, INC.

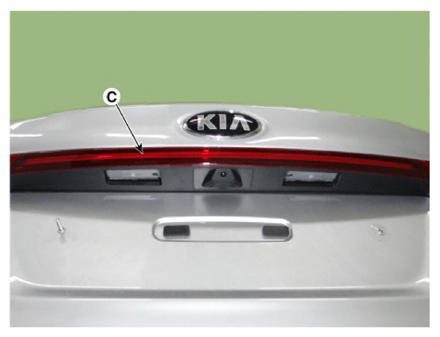

    G13306183Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the connector (A) and then remove the rear view camera & trunk lid handle assembly (B) after loosening the screws.

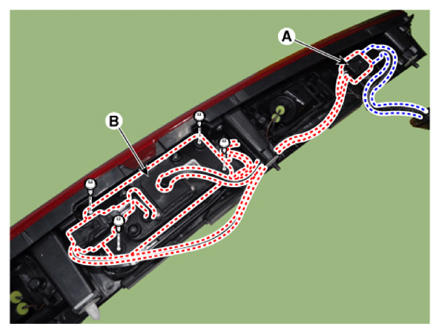

    G13306184Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the rear view camera (A) by loosening the screw from the trunk lid handle (B).

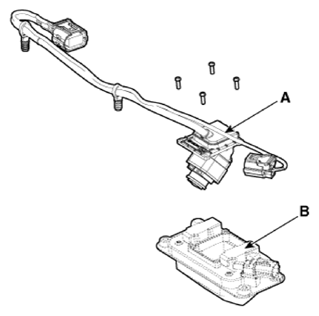

    G13306185Courtesy of KIA MOTORS AMERICA, INC.
