Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

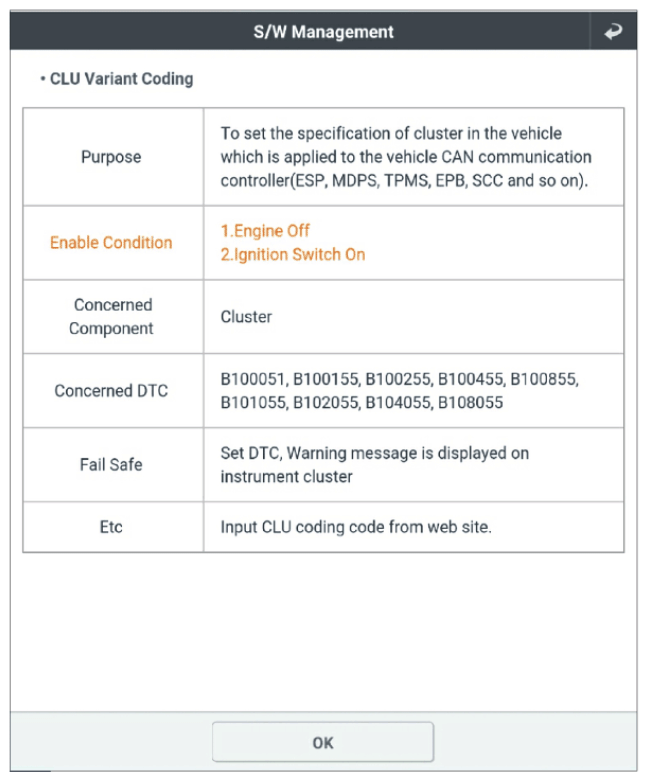

G14565606Courtesy of KIA MOTORS AMERICA, INC.

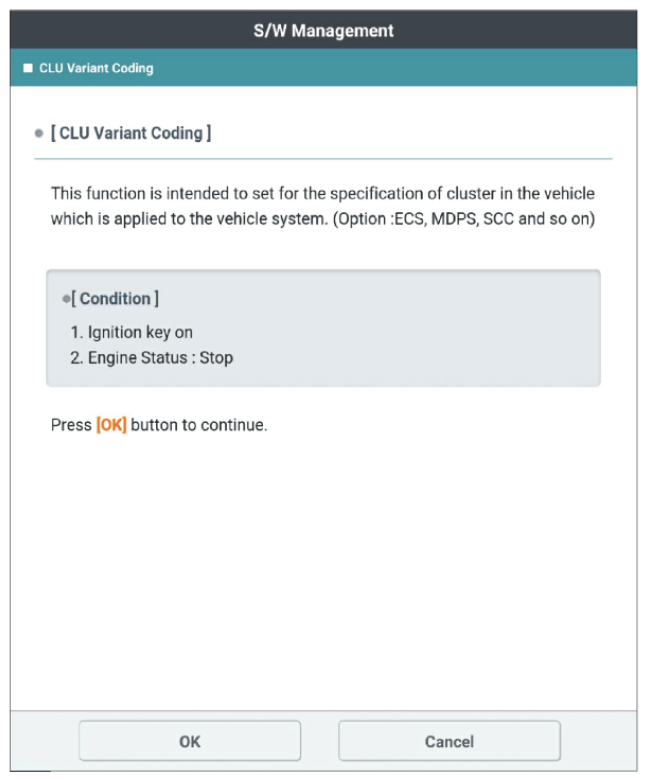

G14565607Courtesy of KIA MOTORS AMERICA, INC.

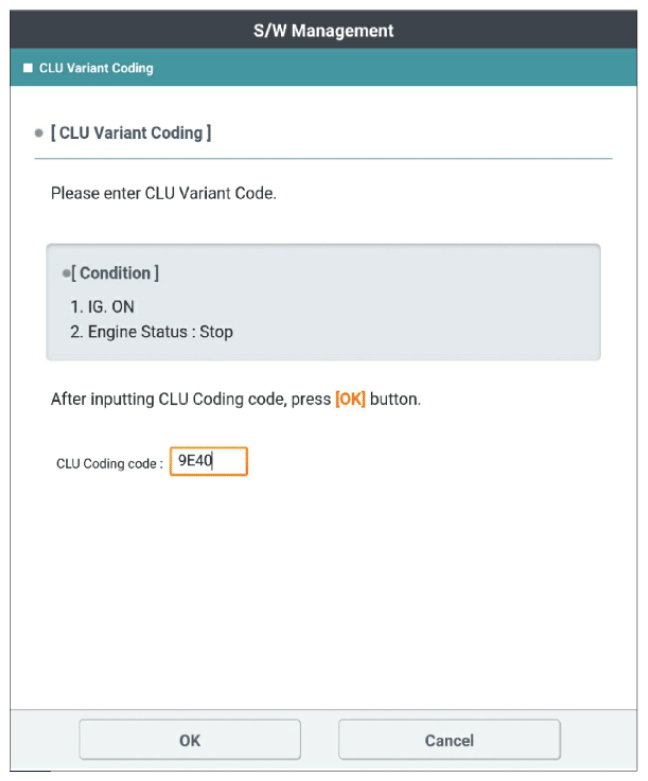

G14565608Courtesy of KIA MOTORS AMERICA, INC.

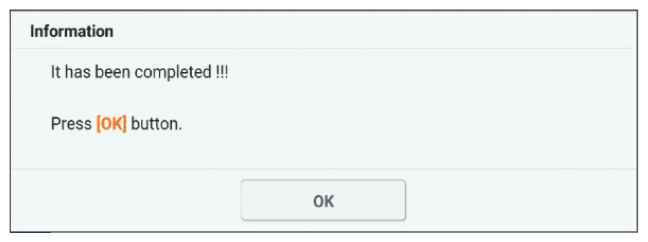

G14565609Courtesy of KIA MOTORS AMERICA, INC.

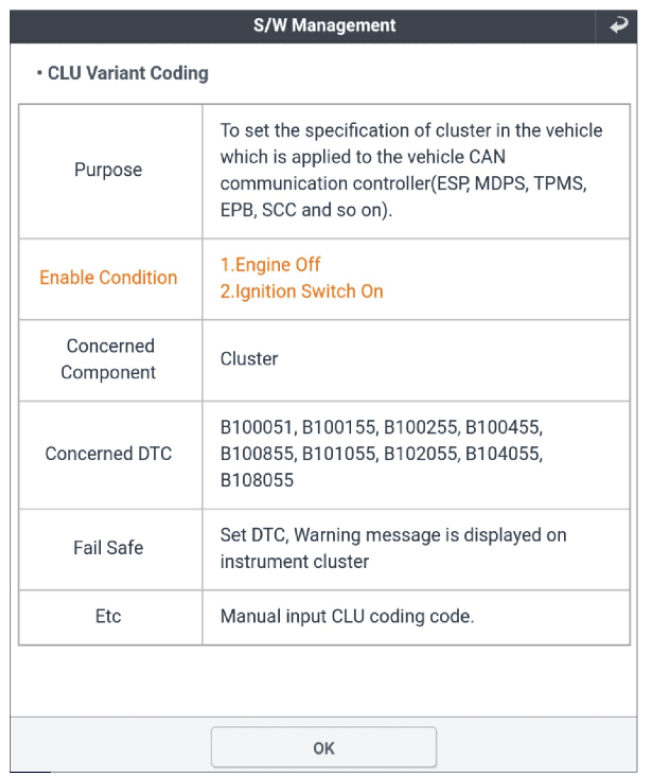

G14565610Courtesy of KIA MOTORS AMERICA, INC.

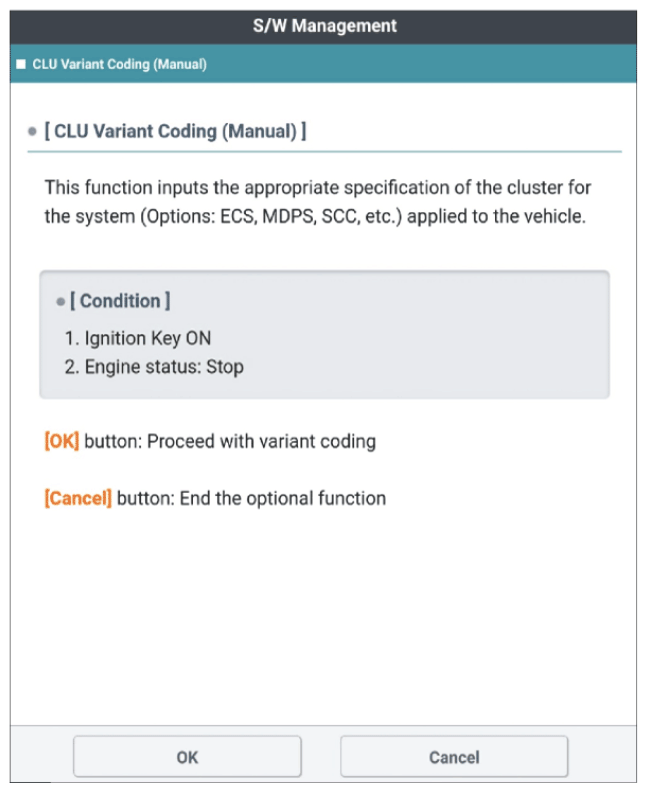

G14565611Courtesy of KIA MOTORS AMERICA, INC.

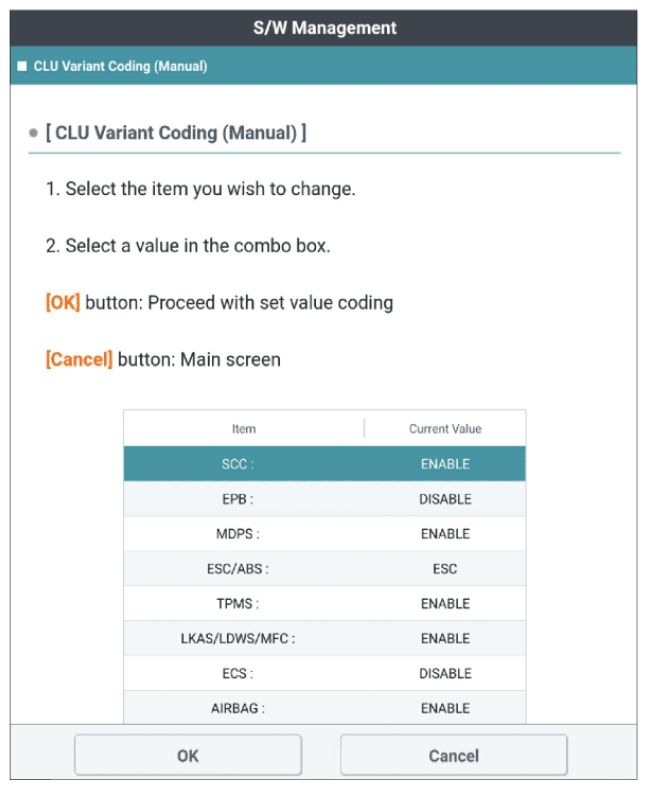

G14565612Courtesy of KIA MOTORS AMERICA, INC.

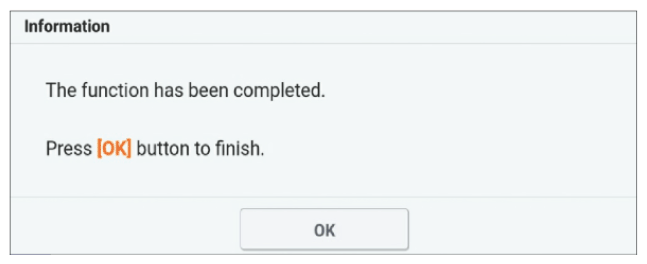

G14565613Courtesy of KIA MOTORS AMERICA, INC.
