Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

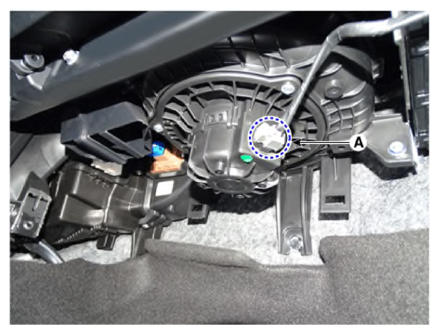

  2. Disconnect the blower motor connector (A).
    G13306482Courtesy of KIA MOTORS AMERICA, INC.

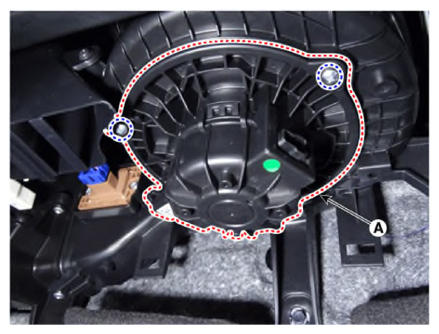

  3. After loosening the mounting screws, remove the blower motor (A).
    G13306483Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
