Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

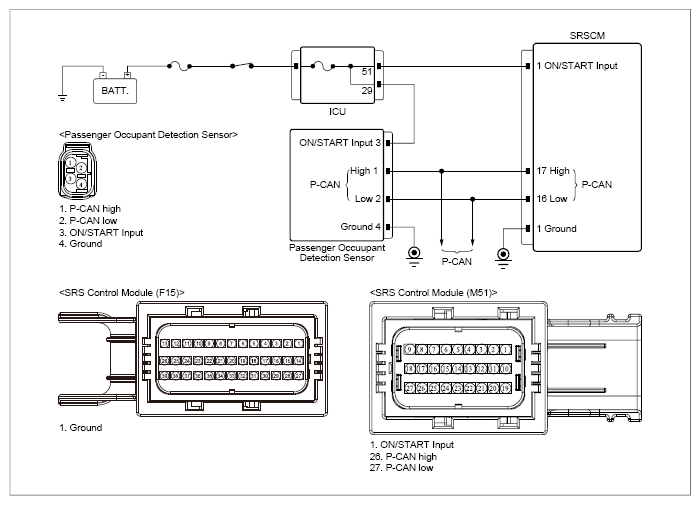

| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
OCS ECU connector | 3 (ON/START Input) | Chassis ground | - | B+ |
|
OCS ECU connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace OCS mat and then go to "BODY SENSOR RESET " and "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and then go to "BODY SENSOR RESET " and "VERIFICATION OF REPAIR " procedure.
