Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

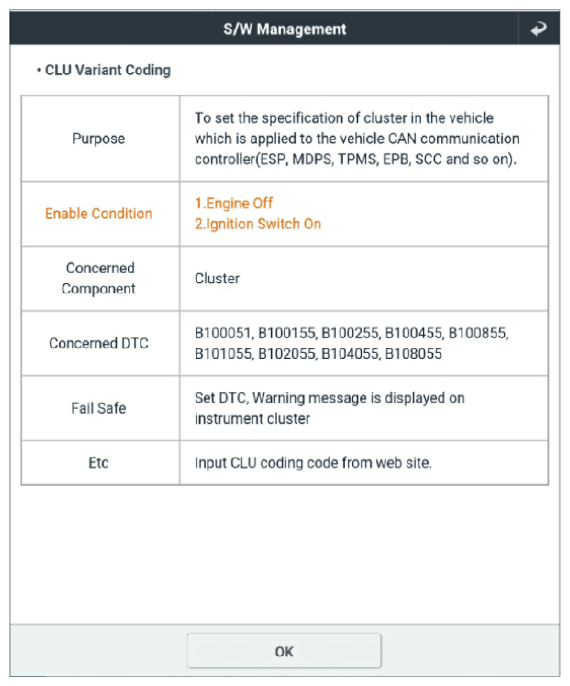

G14565636Courtesy of KIA MOTORS AMERICA, INC.

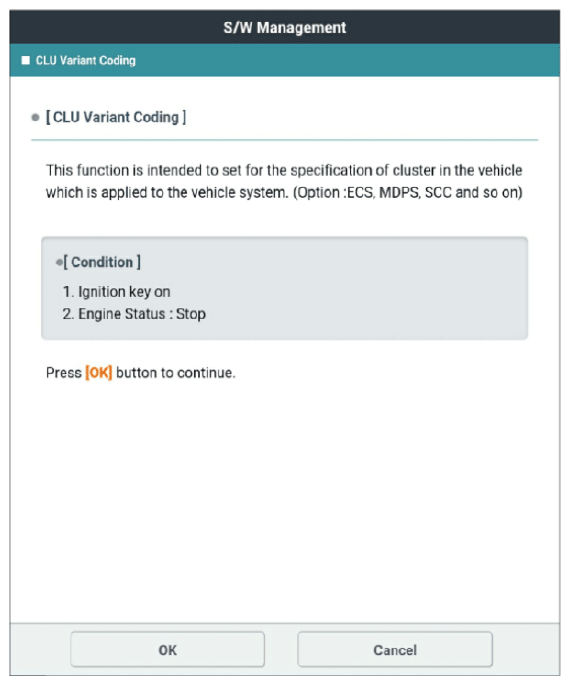

G14565637Courtesy of KIA MOTORS AMERICA, INC.

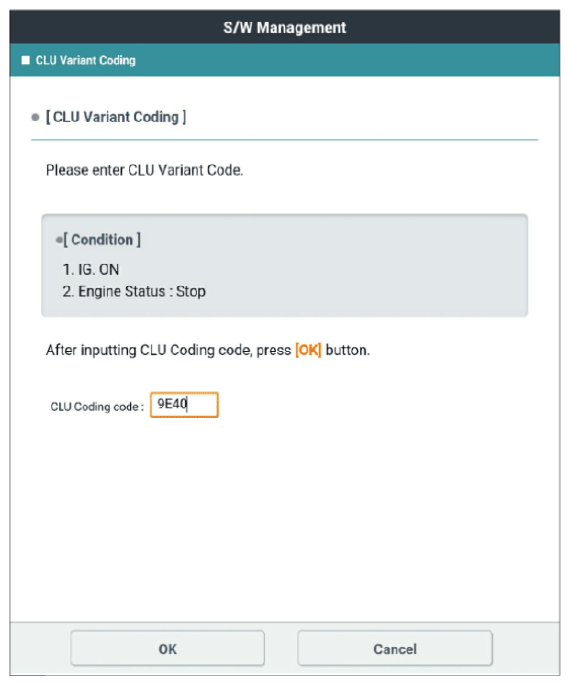

G14565638Courtesy of KIA MOTORS AMERICA, INC.

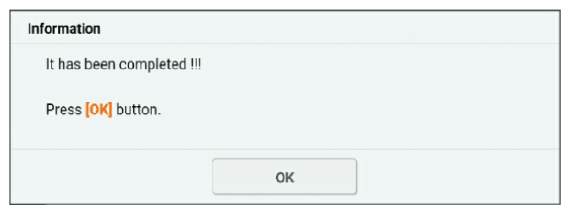

G14565639Courtesy of KIA MOTORS AMERICA, INC.

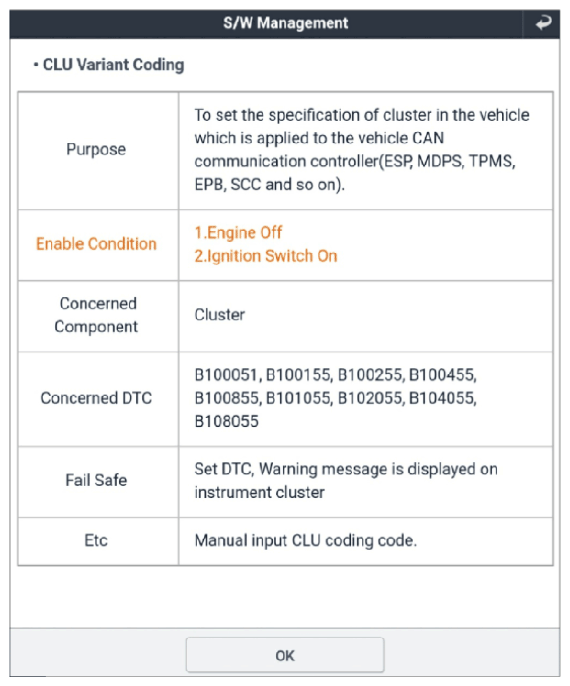

G14565640Courtesy of KIA MOTORS AMERICA, INC.

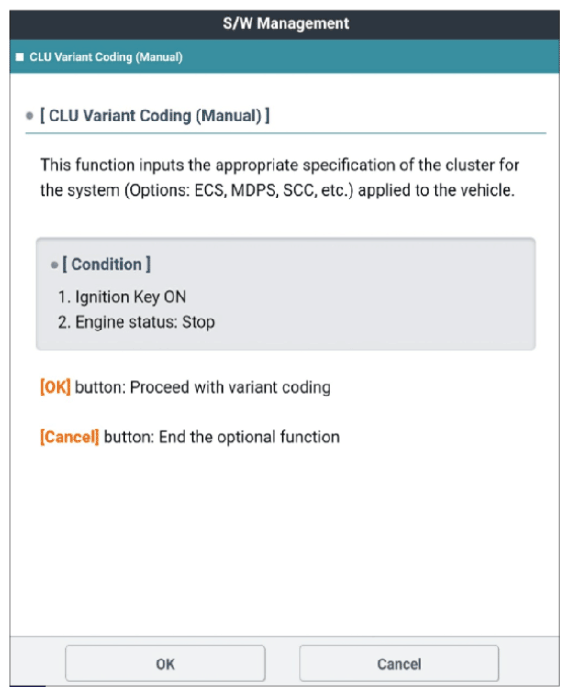

G14565641Courtesy of KIA MOTORS AMERICA, INC.

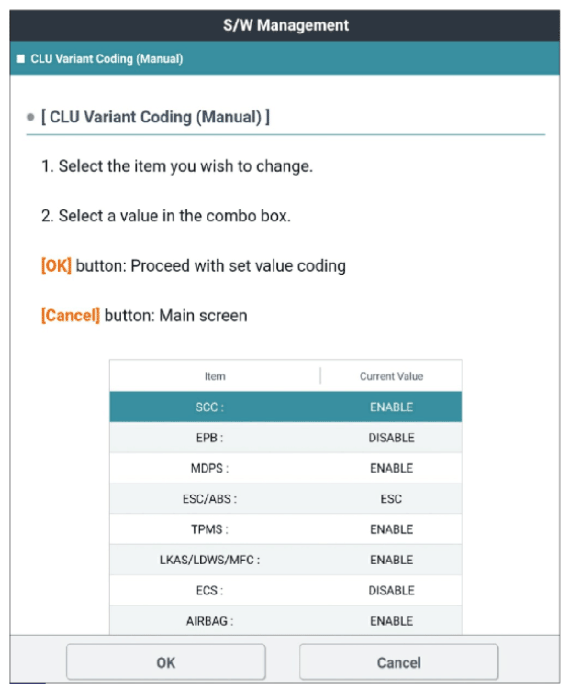

G14565642Courtesy of KIA MOTORS AMERICA, INC.

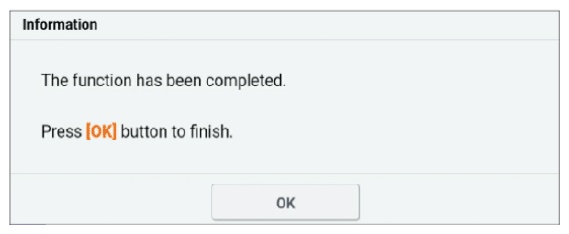

G14565643Courtesy of KIA MOTORS AMERICA, INC.
