Lubrication System - 2.0L
>>

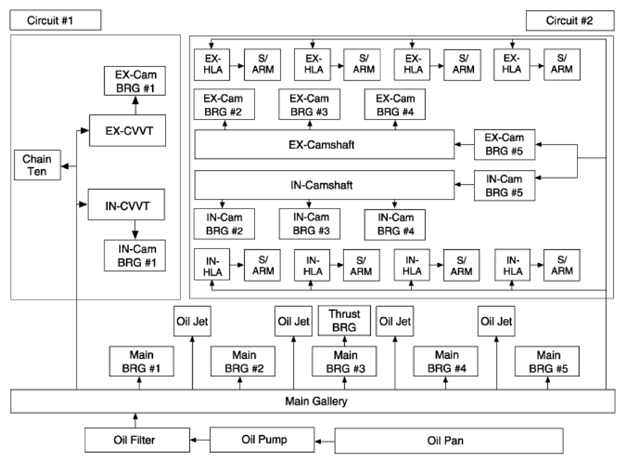

Flow Diagram
>>

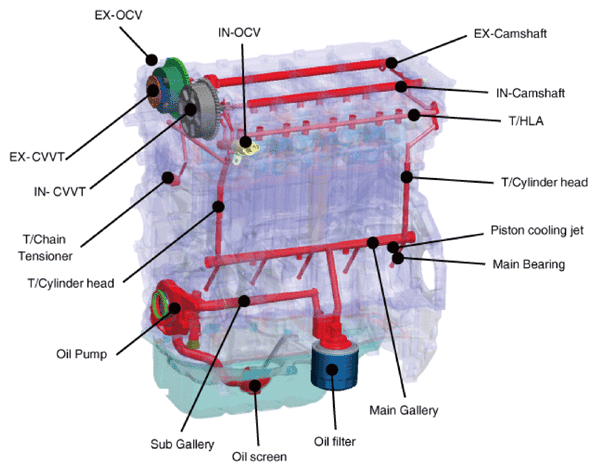

Engine Oil Schematics
Engine Oil Schematics
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
