Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control Diagnosis >> DTC C1206-01: Wheel Speed Sensor Rear-LH Open/Short >> DTC Inspection >> Monitor DTC Status

Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

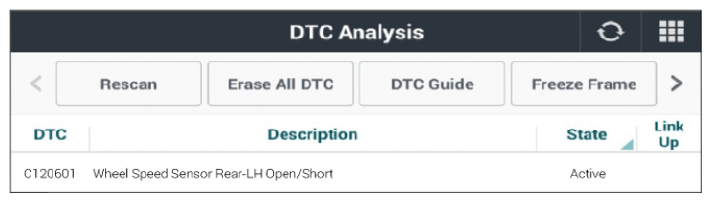

 Fig.1
G13301465Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
