Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

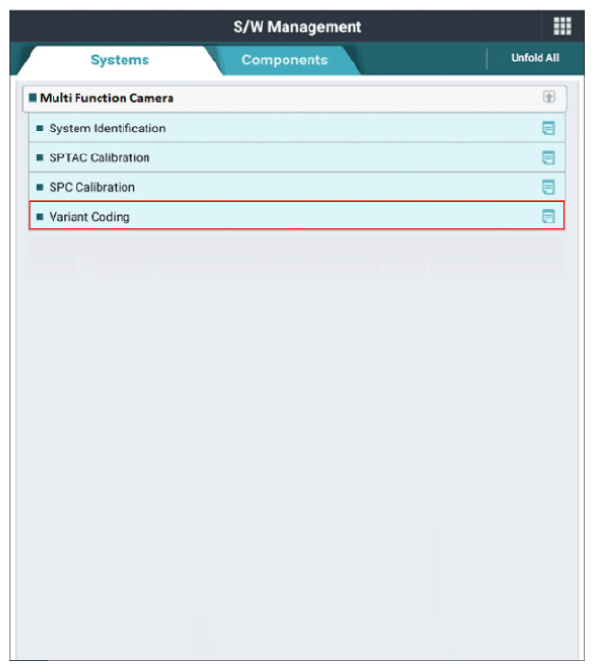

G13294548Courtesy of KIA MOTORS AMERICA, INC.

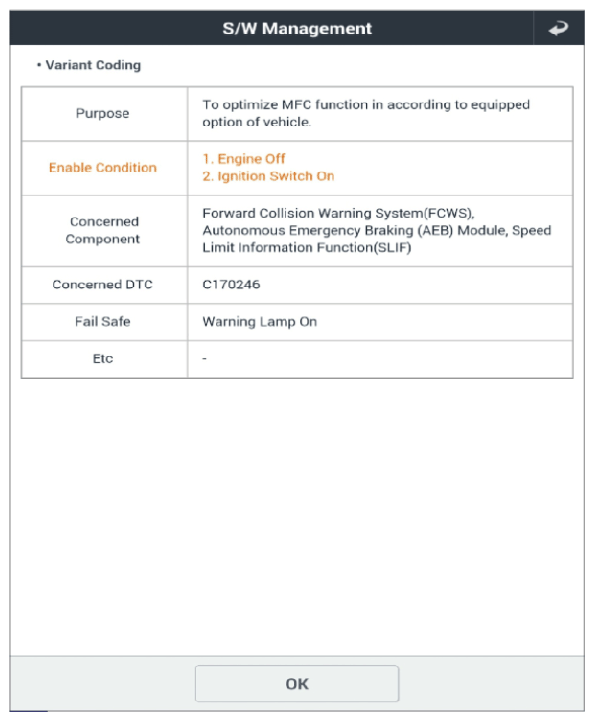

G13294549Courtesy of KIA MOTORS AMERICA, INC.

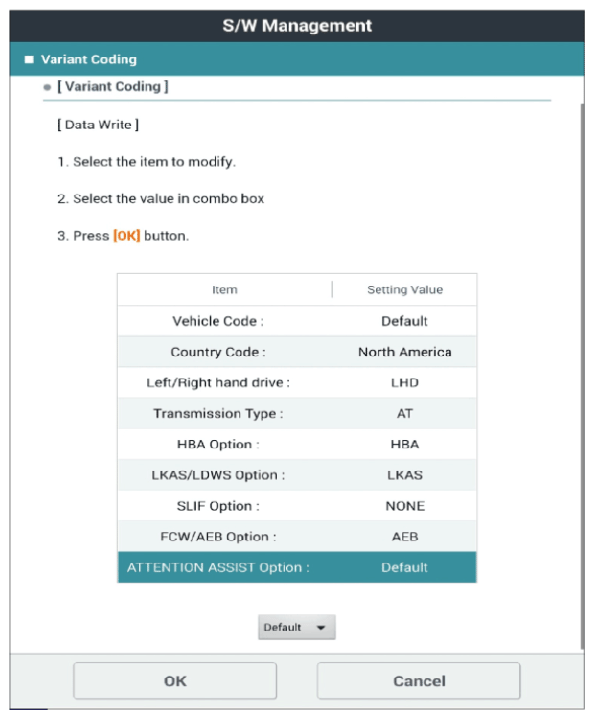

G13294550Courtesy of KIA MOTORS AMERICA, INC.
G13294551Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
