Circuit Inspection
WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
RAIN SENSOR harness connector | 1 (Power) | Chassis ground | - | B+ |
|
RAIN SENSOR harness connector | 2 (Ground) | Chassis Ground | - | Approx. below 1Ω |
|

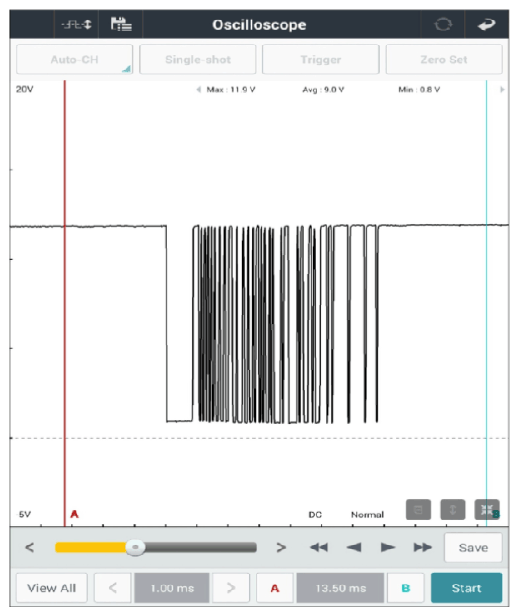

RAIN SENSOR harness connector | 3 (LIN) | Chassis Ground | - | Figure below |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace Rain Sensor and then go to "VERIFICATION OF REPAIR " procedure.
