Home >> Kia >> 2020 >> Sorento L >> Repair and Diagnosis >> External Pages >> Different car >> Section 85 (Blind Spot Detection System) >> Blind Spot Detection Indicator >> Repair Procedures >> Removal

Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

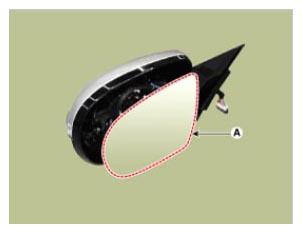

  2. Remove the mirror (A) from the mirror holder.
    G12883886Courtesy of KIA MOTORS AMERICA, INC.

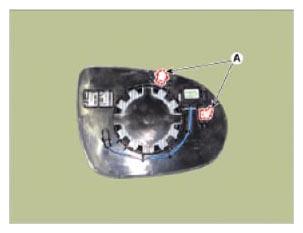

    NOTE: Be careful not to be damage the fixing clips (A).
    G12883887Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the heating connectors (A) and BSD indicator connector (B) from the mirror.
    G12883888Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the BSD warning lamp (A).
    G12883889Courtesy of KIA MOTORS AMERICA, INC.
