On-Line On KDS

WARNING: This page is about a different car, the 2019 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch "OFF" ignition, and connect KDS.
  2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

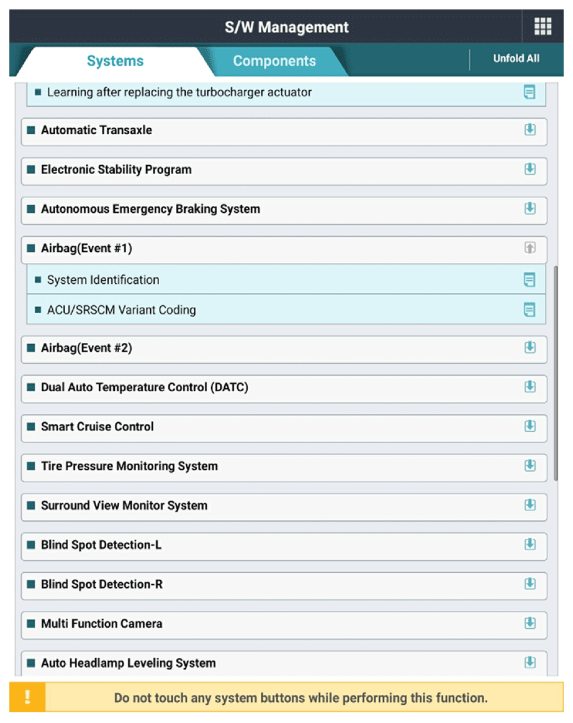

  3. Select Variant coding mode.
    G12858614Courtesy of KIA MOTORS AMERICA, INC.
  4. Enter the VIN code.
