Home
>>
Kia
>>
2020
>>
Sorento L
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>

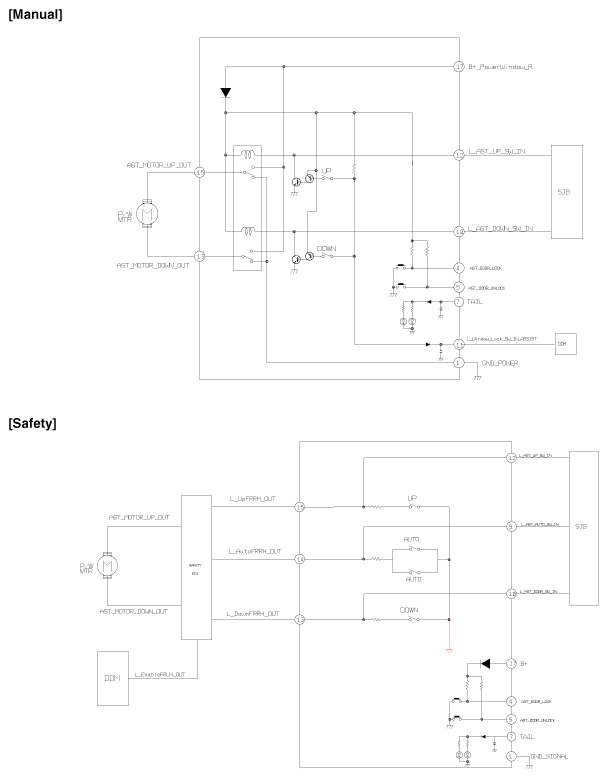

Schematic Diagrams
>>
[Assist Power Window Switch]
[Assist Power Window Switch]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
