Circuit Inspection

G13415572

Courtesy of KIA MOTORS AMERICA, INC.

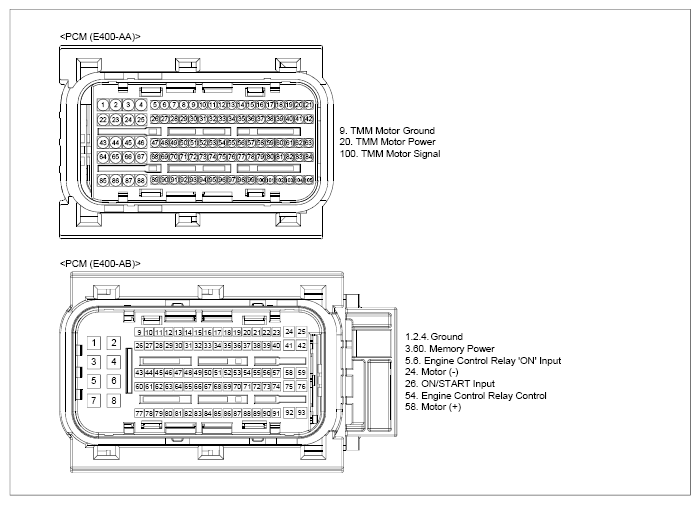

G13415573

Courtesy of KIA MOTORS AMERICA, INC.

G13415574

Courtesy of KIA MOTORS AMERICA, INC.

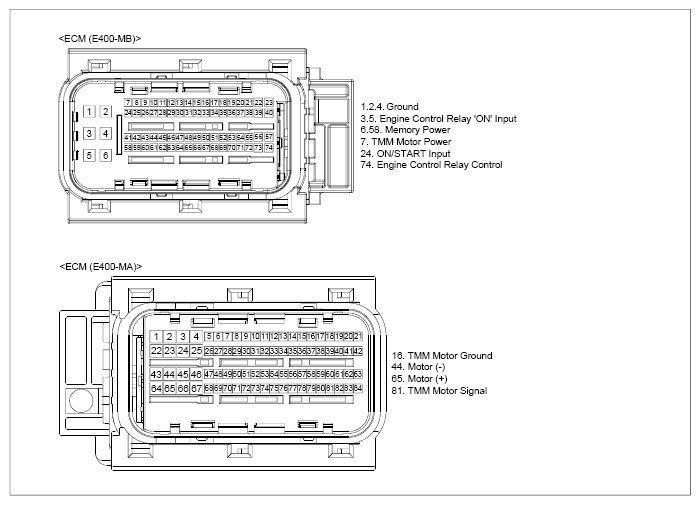

G13415575

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	TMM motor connector	5 (motor +)	Chassis ground	-	Approx. 1.8V
	TMM motor connector	4 (motor -)	Chassis ground	-	Approx. 0V
	TMM motor connector	3 (power)	Chassis ground	-	Approx. 5V
	TMM motor connector	1 (ground)	Chassis ground	-	Approx. 0V
	TMM motor connector	2 (signal)	Chassis ground	-	Approx. 4V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	TMM motor connector	5 (motor +)	Chassis ground	-	∞ (infinity)Ω
	TMM motor connector	4 (motor -)	Chassis ground		∞ (infinity)Ω
	TMM motor connector	2 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
